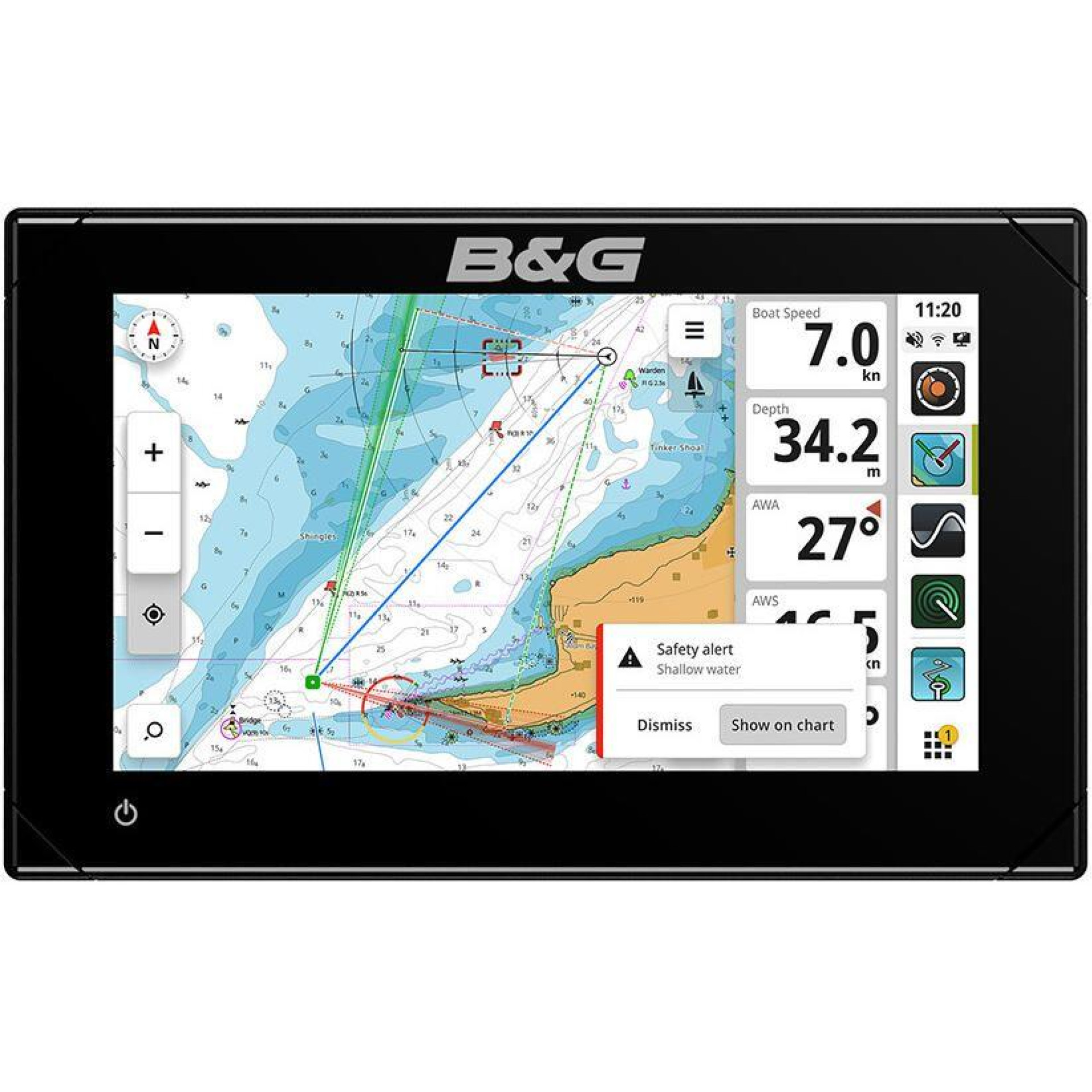

The B&G Zeus S 7 is a compact, sailing-focused multifunction chartplotter designed for cruising and racing sailors. It features a bright 7-inch SolarMAX IPS touchscreen, intuitive Sailing Modes, SailSteer, Laylines, StartLine, C-MAP chart compatibility, internal GPS, Wi-Fi, Bluetooth, NMEA 2000, Ethernet, and sonar connectivity. The display can integrate with compatible B&G autopilots, radar, sailing instruments, sensors, and other onboard systems.

Specifications

• Brand: B&G
• Model: Zeus S 7
• Product Type: Multifunction Display / Sailing Chartplotter
• Manufacturer Part Number: 000-15216-001
• Screen Size: 7 inches
• Display Type: SolarMAX IPS touchscreen
• Resolution: 1024 × 600
• Brightness: 1,200 nits
• Viewing Angle: 85°
• GPS: Internal 10 Hz GPS/GNSS
• GPS Channels: 32
• Wi-Fi: IEEE 802.11 b/g/n
• Bluetooth: Bluetooth 4.0
• NMEA 2000: 1 × Micro-C port
• Ethernet: 1 × 5-pin port
• Sonar: 1 × 9-pin Xsonic 1 kW port
• Sonar Compatibility: CHIRP, 50/200 kHz, HDI, Active Imaging
• Chart Compatibility: C-MAP DISCOVER X and REVEAL X
• Radar Compatibility: B&G HALO Dome and open-array radar
• External Storage: 1 × MicroSD slot
• Waterproof Rating: IPX6 / IPX7
• Supply Voltage: 12 V DC, 10–17 V DC
• Maximum Power Consumption: 11.5 W
• Dimensions: 7.7 × 4.8 × 2.8 inches
• Weight: 1.7 lb
• Mounting: Bracket, panel, or flush mount

Key Features

• 7-inch high-definition SolarMAX IPS touchscreen
• Sailing Modes for cruising and racing
• SailSteer sailing data
• Laylines and StartLine functions
• C-MAP chart support
• Built-in 10 Hz GPS
• Wi-Fi and Bluetooth connectivity
• NMEA 2000 and Ethernet networking
• Compatible with B&G radar, autopilot, instruments, and sensors
• Integrated sonar connectivity
• B&G App integration
• IP camera support
