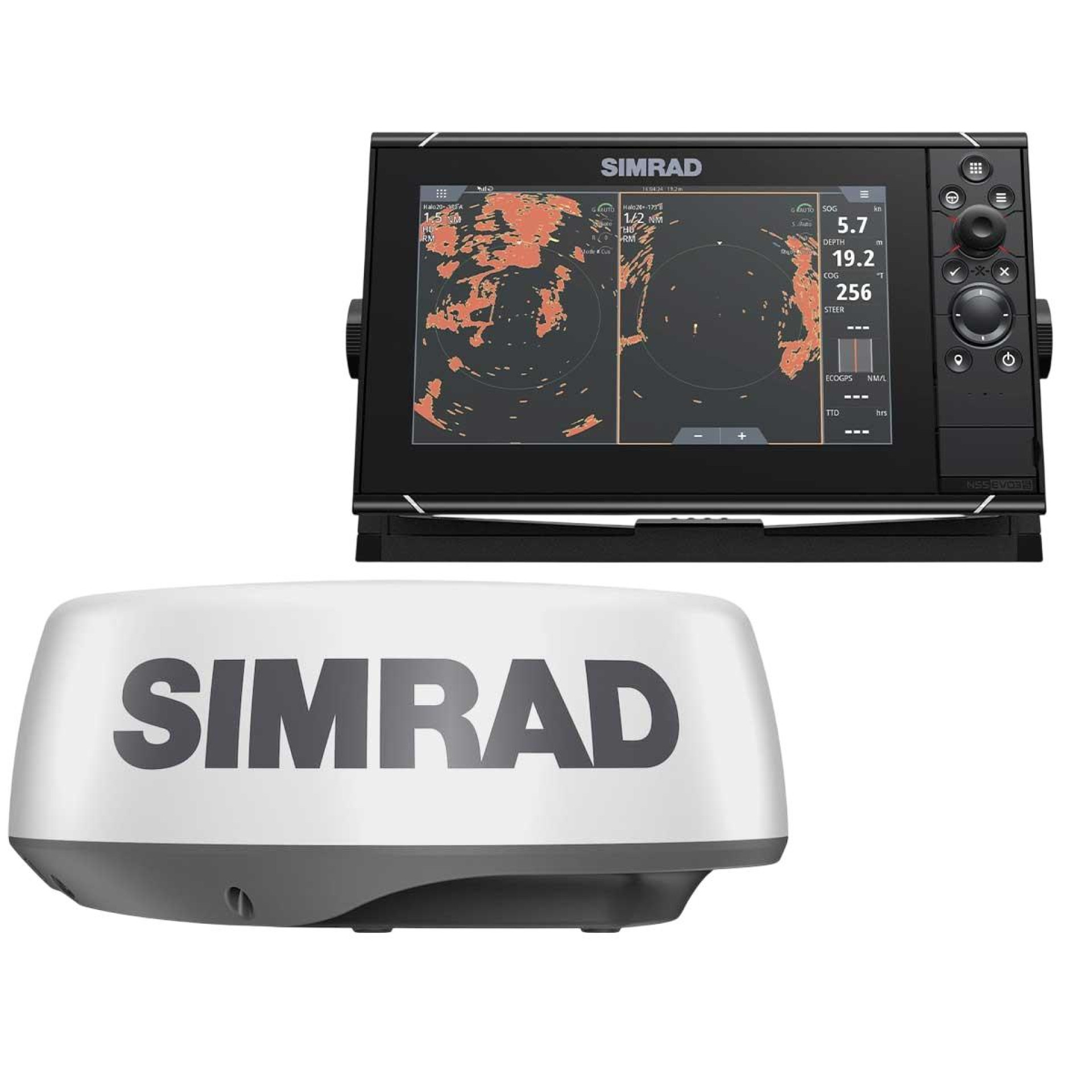

The Simrad NSS9 evo3S Radar Bundle combines a 9-inch high-definition multifunction display with preloaded C-MAP US Enhanced charts and HALO20+ pulse-compression radar. Designed for center-console boats, cruisers, and other powerboats, the NSS9 evo3S features a SolarMAX IPS display, touchscreen and keypad/rotary control, built-in GPS, Wi-Fi, advanced echosounder capabilities, and extensive networking for radar, sonar, autopilot, AIS, engine data, and other marine electronics.

Specifications — NSS9 evo3S

• Brand: Simrad
• Model: NSS9 evo3S
• Product Type: Multifunction Display / Chartplotter & Fishfinder
• MPN: 000-15554-001
• Display Size: 9 inches
• Resolution: 1280 × 720
• Display Technology: SolarMAX IPS
• Touchscreen: Yes
• Control: Touchscreen, keypad and rotary dial
• Processor: iMX 8 high-performance processor
• GPS: Built-in
• Wi-Fi: Built-in
• Sonar: Built-in advanced echosounder
• Sonar Capability: Up to 1 kW dual-channel CHIRP
• Sonar Compatibility: ActiveTarget, Active Imaging, ForwardScan, DownScan and StructureScan 3D
• NMEA 2000: Supported
• Ethernet: Supported
• Video: Composite video and NMEA 0183
• Cartography: C-MAP US Enhanced Charts
• Chart Features: High-resolution bathymetry, 1-foot contours, C-MAP Reveal coverage for Florida and Easy Routing
• Transducer: Not included
• Mounting: Panel mount
• Operating Temperature: -15°C to +55°C
• Dimensions: 287 × 166 × 90 mm
• Weight: 1.41 kg / 3.11 lb

Specifications — HALO20+ Radar

• Radar Type: Pulse Compression
• Antenna: 20-inch dome
• Maximum Range: 36 NM
• Rotation Speed: Up to 60 RPM
• Technology: Beam Sharpening
• Dual Range: Yes
• VelocityTrack™: Yes
• Minimum Range: Approximately 6 m / 20 ft
• Radar Modes: Harbor, Offshore, Weather and Custom
• Radar Overlay: Supported
• MARPA: Target tracking supported
• Radar Cable: 10 m cable included

Key Features

• 9-inch high-definition SolarMAX IPS display
• Preloaded C-MAP US Enhanced Charts
• HALO20+ pulse-compression radar included
• Up to 36 NM radar range
• Up to 60 RPM radar rotation
• VelocityTrack™ Doppler target detection
• Dual-range radar operation
• Built-in GPS and Wi-Fi
• iMX 8 high-performance processor
• Touchscreen plus keypad/rotary control
• Built-in advanced echosounder
• Supports 1 kW dual-channel CHIRP
• ActiveTarget live sonar compatible
• Active Imaging compatible
• ForwardScan compatible
• NMEA 2000 networking
• Ethernet networking
• Radar overlay
• AIS and MARPA support
• Compatible with autopilot and engine integration

What's Included

• Simrad NSS9 evo3S multifunction display
• HALO20+ radar
• 10 m HALO dome radar cable
• Power cable and connector block
• Panel mounting kit
• Radar/MFD kit components
• Preloaded C-MAP US Enhanced charts

Not included: Transducer.
