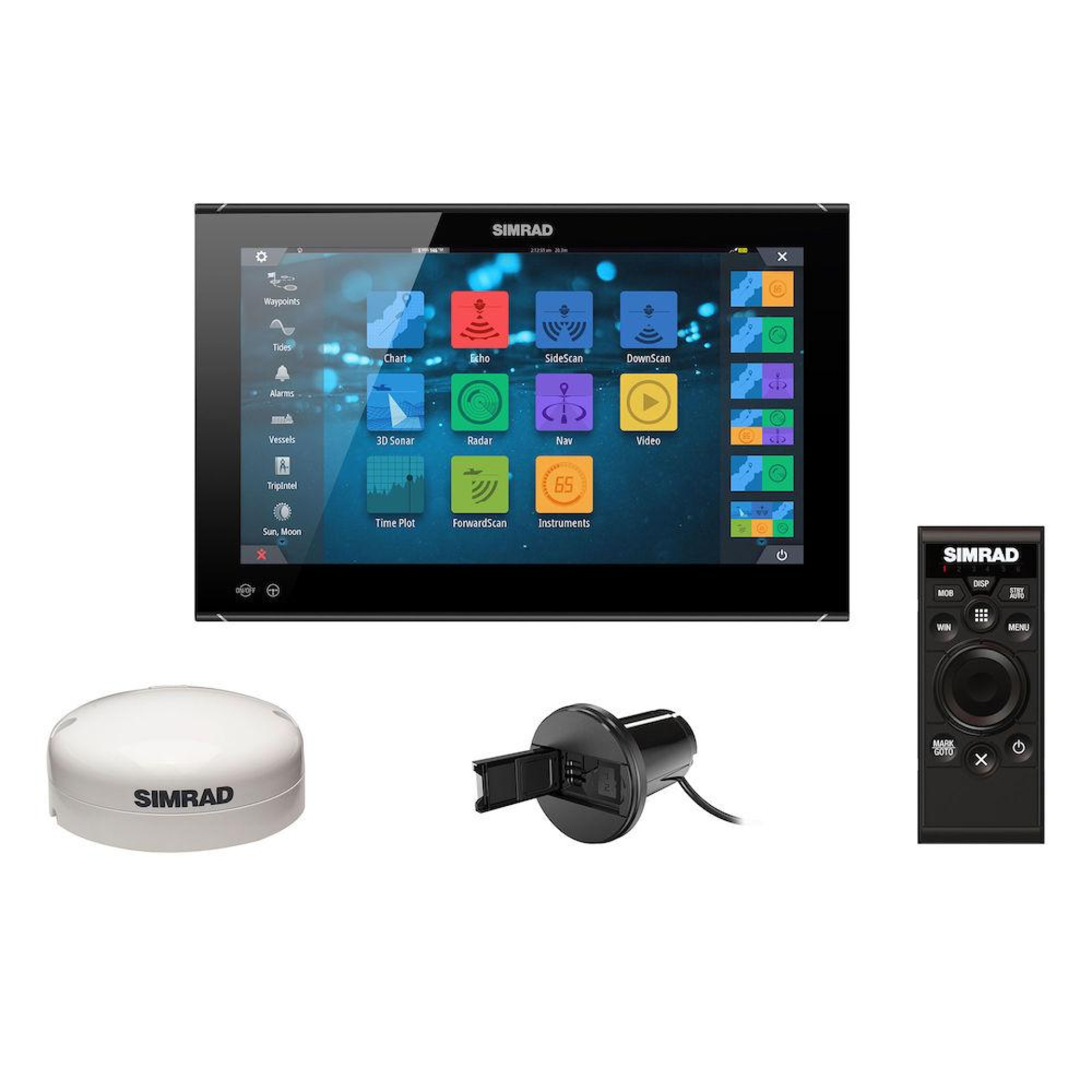

The Simrad NSO evo3S 19" MFD System Pack is a premium glass-helm multifunction display system built for advanced marine navigation and vessel integration. Its ultra-bright 19-inch Full HD display provides excellent visibility from multiple viewing angles, while the integrated iMX 8 six-core processor delivers fast, responsive operation. The system supports up to six split-screen panels and can integrate navigation, radar, sonar, autopilot, engine data, and other onboard systems.

Specifications

• Brand: Simrad
• Model: NSO evo3S 19
• Product Type: Multifunction Display System Pack
• MPN / SKU: 000-15127-001
• Screen Size: 19 inches
• Display: Full HD ultra-bright touchscreen
• Display Technology: 18.5-inch AHVA optically bonded TFT
• Processor: iMX 8 integrated six-core processor
• Touchscreen: Multi-touch
• Split Screen: Up to 6 panels
• Cartography Compatibility: C-MAP, Navionics, Insight and compatible chart formats
• Built-In Charting: C-MAP coastal charts on applicable regional versions
• Wi-Fi: Built-in
• Ethernet: Supported
• NMEA 2000: Supported
• J1939: Supported
• Radar Compatibility: Broadband Radar, HALO Pulse Compression Radar and HD Pulse Radar
• Sonar Compatibility: SonarHub, S5100 and StructureScan 3D network modules
• Autopilot: Full autopilot control and commissioning
• AIS: Supported via NMEA 2000 / NMEA 0183
• Weather: GRIB and SiriusXM with compatible hardware
• Remote Controller: OP50 included
• GPS Antenna: GS25 included
• Chart Card Reader: Two-slot microSD chart card reader included
• Transducer: Not included

Key Features

• 19-inch Full HD multifunction display
• Ultra-bright glass-helm touchscreen
• iMX 8 six-core processor
• Up to six-panel split-screen layouts
• Low-profile glass-helm design
• Touchscreen plus OP50 remote keypad control
• Built-in wireless connectivity
• Ethernet, NMEA 2000 and J1939 networking
• Radar, sonar and autopilot integration
• Compatible with third-party marine electronics
• C-MAP charting support
• Designed for advanced cruising and integrated vessel systems

What's Included

• Simrad NSO evo3S 19" MFD
• OP50 remote keypad
• GS25 GPS antenna
• Two-slot microSD chart card reader
