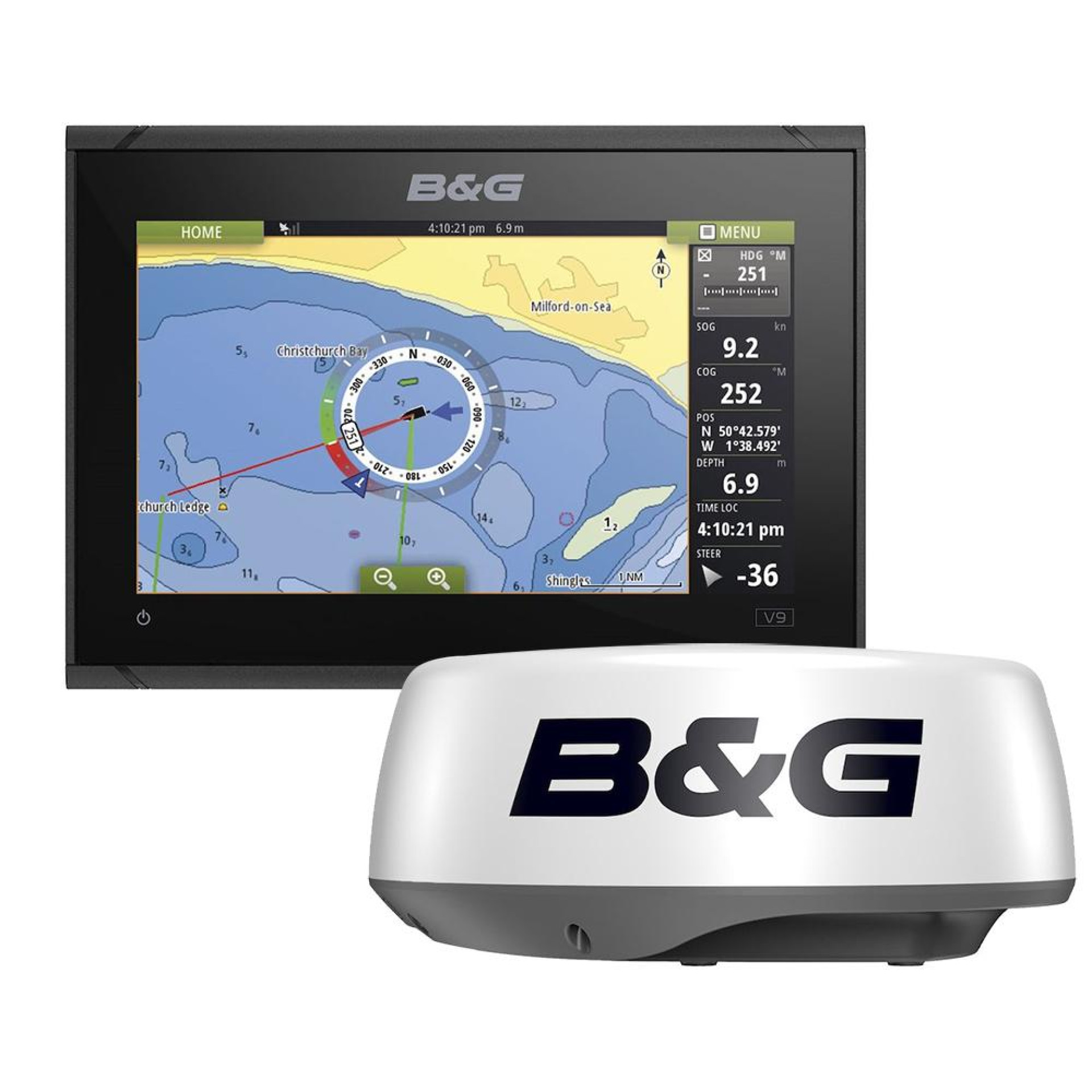

The B&G Vulcan 9 FS is a 9-inch multifunction sailing chartplotter bundled with a B&G HALO20 Radar. Designed for coastal cruising and club racing, the system combines navigation, sailing data, integrated sonar capabilities, GPS, Wi-Fi, and radar for enhanced situational awareness. Dedicated sailing features include SailSteer, SailingTime, RacePanel, Laylines, WindPlot, GRIB Weather, and AIS display.

Specifications — Vulcan 9 FS

• Brand: B&G
• Model: Vulcan 9 FS
• Product Type: Multifunction Display / Sailing Chartplotter
• MPN: 000-15620-001
• Display Size: 9 inches
• Resolution: 800 × 480
• Brightness: 1,200 nits
• Display: TFT widescreen touchscreen
• GPS: Internal 10 Hz GPS
• Wi-Fi: Built-in
• NMEA 2000: Supported
• Sonar: CHIRP & DownScan
• Sonar Frequencies: 50/200/455/800 kHz
• Chart Options: C-MAP, Navionics, NV Digital Charts, Insight
• Charts Included: No
• Waterproof Rating: IPX7
• Operating Temperature: -15°C to +55°C
• Dimensions: 9.56 × 3.26 × 6.71 inches
• Weight: 2.91 lb
• Power Supply: 12V DC
• Transducer: Not included

Specifications — HALO20 Radar

• Radar Type: Pulse Compression
• Maximum Range: 24 NM
• Minimum Range: 50 m / 200 ft / 50 yd
• Rotation Speed: 24 RPM
• Beam Width: 4.9° H × 25° V
• Supply Voltage: 10.5–31.2V DC
• Typical Power Consumption: 18W
• Maximum Power Consumption: 20W
• Recommended Fuse: 5A
• Maximum Wind Speed: 100 knots
• Waterproof Rating: IPX6
• Radar Modes: Harbor, Offshore, Weather, North Up, Course Up, Relative Motion, True Motion
• Radar Interface: B&G MFD
• Weight: 13 lb / 5.9 kg without cable

Key Features

• 9-inch B&G Vulcan 9 FS multifunction display
• HALO20 pulse-compression radar included
• 24 nautical mile maximum radar range
• Built-in 10 Hz GPS
• Built-in Wi-Fi
• CHIRP and DownScan sonar
• ForwardScan-ready
• NMEA 2000 networking
• SailSteer sailing navigation
• SailingTime
• RacePanel
• Laylines
• WindPlot
• GRIB weather display
• AIS display
• B&G autopilot integration
• Radar and marine electronics integration

What's Included

• B&G Vulcan 9 FS Display
• B&G HALO20 Radar
• HALO20 20-meter cable
• HALO dome radar Ethernet adapter cable
• Sun cover
• Bezel
• Dash mount kit
• Power cable
• Waterproof boot seal

Not included: Transducer and charts.
