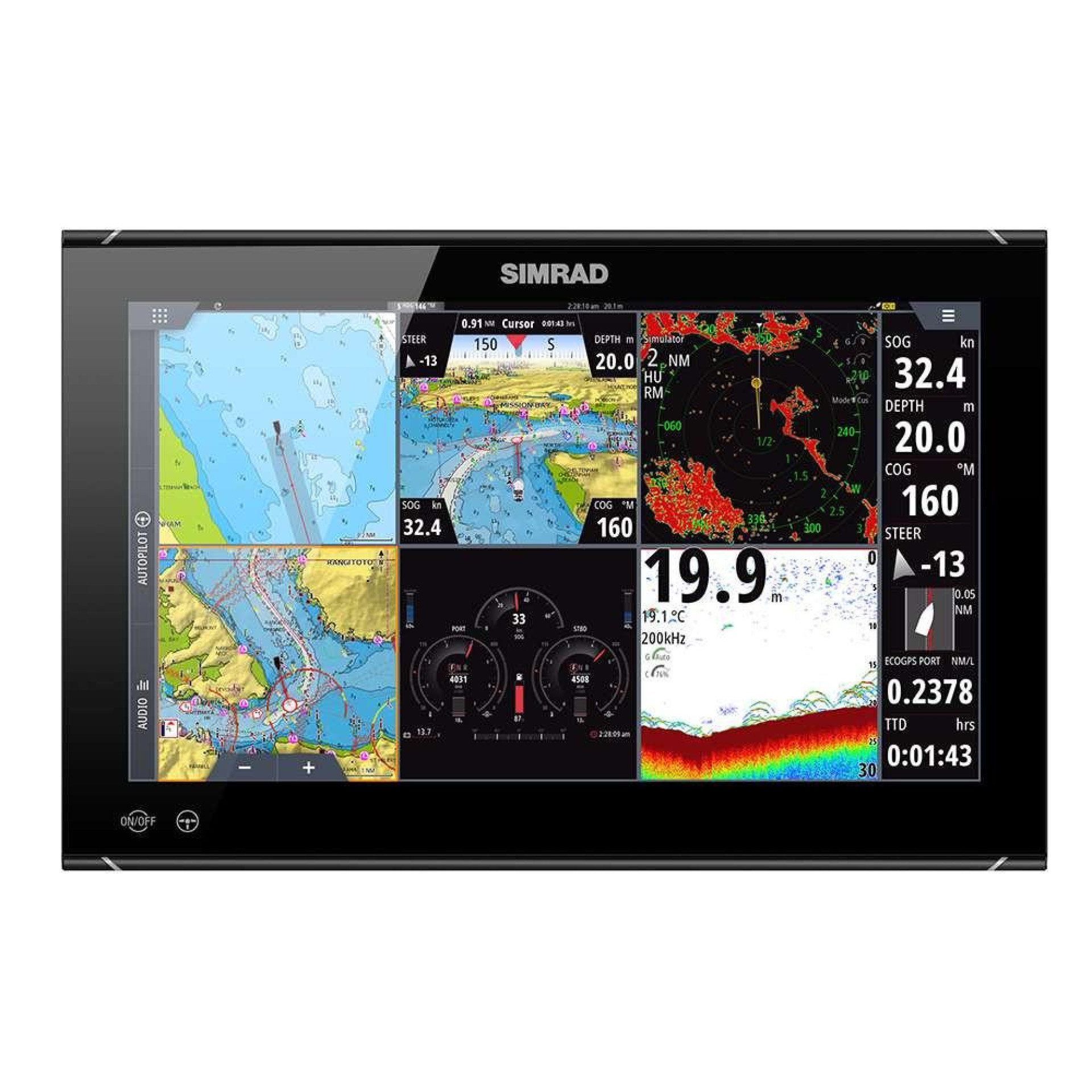

The Simrad NSO evo3S 16" MFD System Pack is a premium glass-helm multifunction display system designed for advanced marine navigation, monitoring, and vessel-wide integration. Its ultra-bright 16-inch Full HD touchscreen provides excellent visibility for indoor and outdoor helm installations, while the integrated high-performance processor delivers fast and responsive operation. The system supports customizable multi-panel layouts with up to six panels, allowing navigation, radar, sonar, engine data, and other information to be displayed simultaneously.

The system pack includes an OP50 wired remote controller, GS25 GPS antenna, and MI10 two-slot microSD chart card reader, providing the core components needed for a sophisticated Simrad glass-helm installation.

Specifications

• Brand: Simrad
• Model: NSO evo3S 16
• Product Type: Multifunction Display System Pack
• MPN / SKU: 000-15126-001
• Screen Size: 16 inches
• Display Resolution: Full HD
• Display: Ultra-bright touchscreen
• Processor: Integrated iMX 8 six-core processor
• Touchscreen: Yes
• Split Screen: Up to 6 panels
• Cartography Compatibility: Navionics, C-MAP, Lowrance and CMOR
• Wireless Connectivity: Built-in Wi-Fi
• NMEA 2000: Supported
• J1939: Supported
• Ethernet: Multiple Ethernet network connections
• Video: HDMI input/output and composite video input
• Storage: microSD card support
• GPS Antenna: GS25 included
• Remote Controller: OP50 included
• Chart Reader: MI10 two-slot microSD reader included
• Transducer: Not included
• Primary Applications: Marine navigation, radar, sonar, engine monitoring and integrated glass-helm systems
• Mounting: Glass-helm / panel installation

Key Features

• 16-inch Full HD multifunction display
• Ultra-bright screen for indoor and outdoor installations
• Wide viewing angles
• Responsive touchscreen operation
• OP50 remote keypad included
• GS25 GPS antenna included
• MI10 two-slot microSD reader included
• Six-panel split-screen capability
• High-performance iMX 8 six-core processor
• Built-in wireless connectivity
• Ethernet networking
• NMEA 2000 networking
• J1939 engine integration
• Radar and sonar integration
• Customizable glass-helm layouts
• Designed for advanced cruising and offshore vessel systems

What's Included

• Simrad NSO evo3S 16" MFD
• OP50 wired remote controller
• GS25 GPS antenna
• MI10 two-slot microSD chart card reader
• Mounting and installation components
• Required cables and connectors
