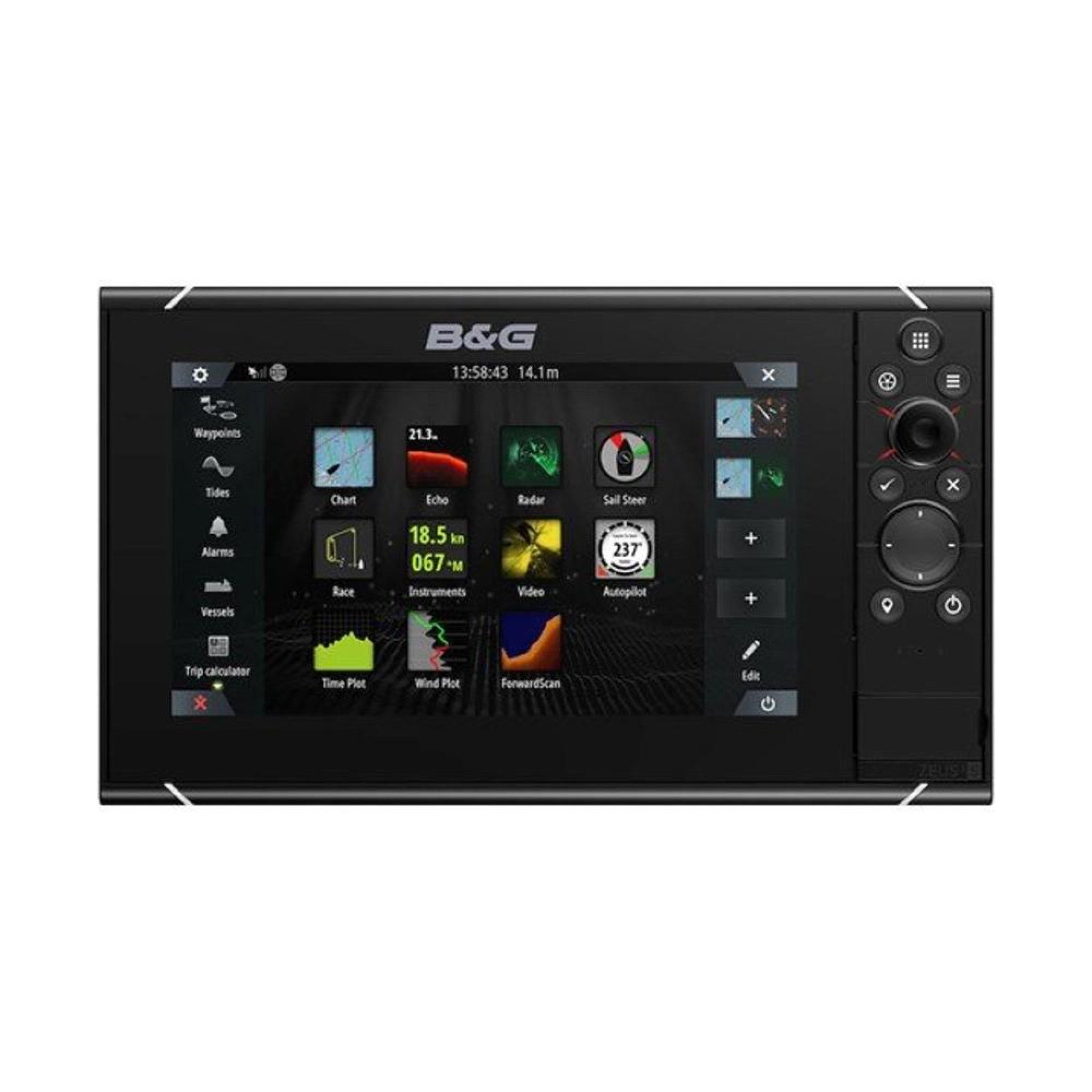

The B&G Zeus³S 12 is a high-performance multifunction sailing display designed for bluewater cruisers and regatta racers. Its 12-inch SolarMAX HD IPS touchscreen provides high visibility in challenging marine conditions, while the rotary dial and keypad provide additional control when operating in rough seas. The display supports C-MAP cartography, integrated GPS, Wi-Fi, NMEA 2000 networking, Ethernet, radar, autopilot, sonar, and B&G sailing features such as SailSteer, Laylines, RacePanel, PredictWind, and SailingTime.

Specifications

• Brand: B&G
• Model: Zeus³S 12
• Product Type: Multifunction Display / Sailing Chartplotter
• Manufacturer Part Number: 000-15409-002
• Display Size: 12 inches
• Resolution: 1280 × 800
• Display Type: SolarMAX HD IPS optically bonded TFT
• Brightness: 1,200 nits
• Controls: Multi-touch touchscreen, rotary dial and keypad
• Cartography: C-MAP
• GPS: Built-in 10 Hz GNSS receiver
• GPS Channels: 34
• Wi-Fi: Built-in
• Bluetooth: Built-in
• Ethernet: 2 × 5-pin 10/100 Mbit ports
• NMEA 2000: 1 × Micro-C port
• Sonar Connectivity: Supported
• Radar Integration: Supported
• Autopilot Integration: Supported
• Internal Storage: 16 GB
• MicroSD: 2 slots
• Waypoints: Up to 6,000
• Routes: Up to 500
• Tracks: Up to 50, with up to 12,000 points per track
• Waterproof Rating: IPX6 and IPX7
• Supply Voltage: 10–31.2 V DC
• Dimensions: 13.84 × 8.87 × 3.82 inches
• Weight: Approximately 13.2 lb
• Recommended Fuse: 5A

Key Features

• 12-inch high-visibility SolarMAX HD IPS display
• Full touchscreen plus rotary dial and keypad control
• C-MAP chart support
• Built-in high-speed GPS/GNSS
• Built-in Wi-Fi and Bluetooth
• SailSteer sailing navigation
• Laylines
• RacePanel
• PredictWind integration
• SailingTime
• Supports up to six information panels simultaneously
• NMEA 2000 and Ethernet networking
• Radar and autopilot integration
• Sonar compatibility with suitable transducer
• Designed for offshore cruising and racing
