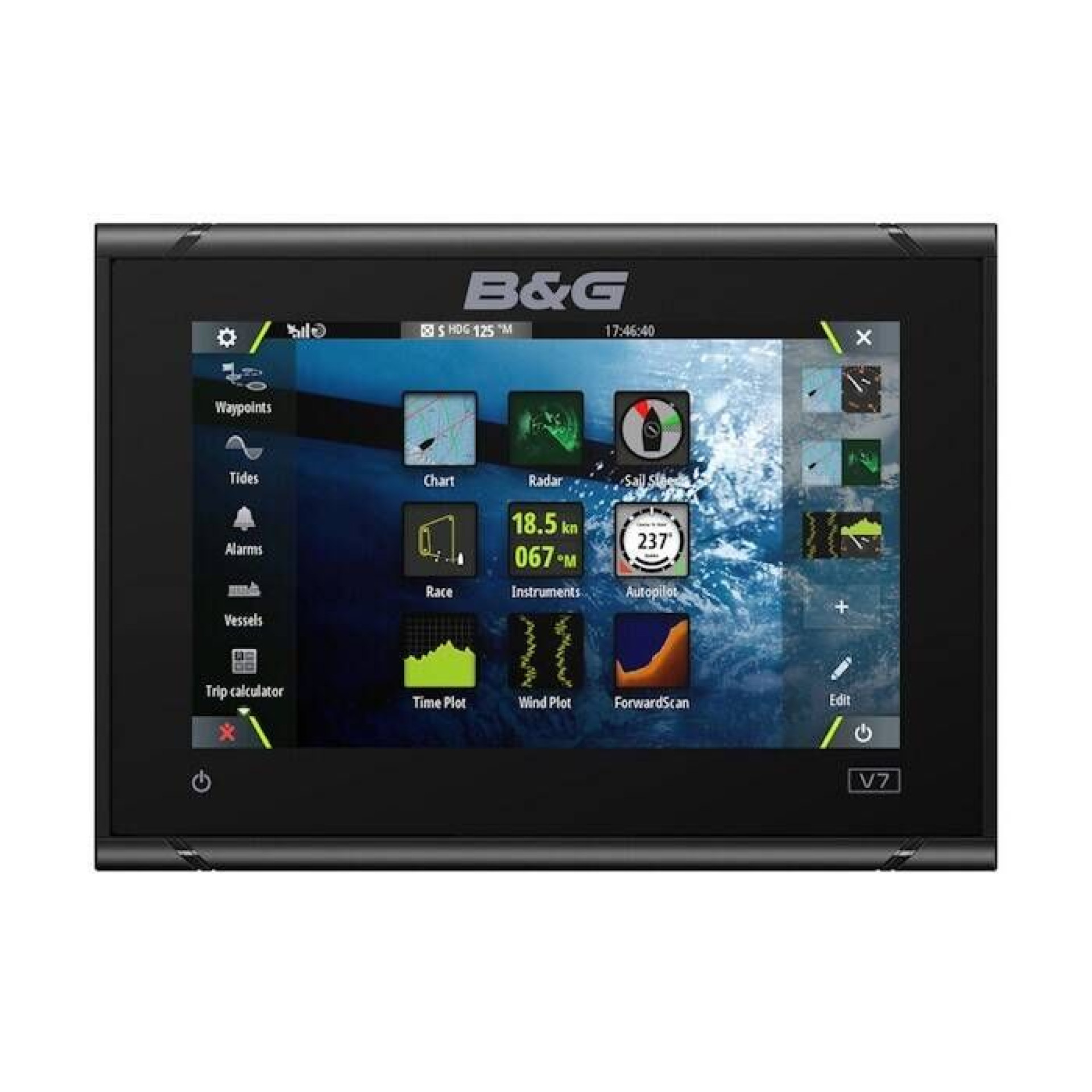

The B&G Vulcan 7R is a 7-inch multifunction sailing chartplotter designed for coastal cruising and club racing. It features a multi-touch display, dedicated B&G sailing functions including SailSteer, SailingTime, RacePanel, and Laylines, plus built-in 10 Hz GPS and Wi-Fi. The Vulcan 7R is also ready for NMEA 2000 networking, Broadband Radar, ForwardScan, and B&G autopilot integration. No transducer is included.

Specifications

• Brand: B&G
• Model: Vulcan 7R
• Product Type: Multifunction Display / Sailing Chartplotter
• MPN: 000-14082-001
• Display Size: 7 inches
• Display Resolution: 800 × 480
• Display Brightness: 1,200 nits
• Display: Multi-touch touchscreen
• GPS/GNSS: Built-in 10 Hz GPS
• GPS Channels: 32
• Wi-Fi: Built-in
• Ethernet: 1 × 5-pin 100 Mbit connector
• NMEA 2000: Yes
• Sonar: Built-in sonar capability
• Radar Ready: Broadband Radar
• ForwardScan: Ready
• Autopilot: B&G Pilot compatible
• Memory: 1 × MicroSD slot, up to 32 GB
• Waypoints: Up to 6,000
• Routes: Up to 500
• Tracks: Up to 50, with up to 12,000 track points
• Water Resistance: IPX6 / IPX7
• Power Supply: 12 V DC, 10–17 V
• Power Consumption: Approximately 12 W
• Dimensions: 197 × 141 × 82.7 mm
• Weight: Approximately 1.32 kg
• Transducer: Not included
• Cartography: Preloaded Basemap

Key Features

• 7-inch multi-touch sailing display
• SailSteer™
• SailingTime
• RacePanel
• Laylines
• Built-in 10 Hz GPS
• Integrated Wi-Fi
• C-MAP Easy Routing support
• Navionics Autorouting support with compatible charts
• NMEA 2000 connectivity
• Broadband Radar ready
• ForwardScan ready
• B&G autopilot control
• Designed for coastal cruising and club racing
