⚓ Marine Equipment Specialist: Yamaha High Thrust Authority.
Verified technical data for heavy-displacement applications. This T60 model features a specialized high-ratio gearcase designed for superior pushing power on pontoons and workboats.

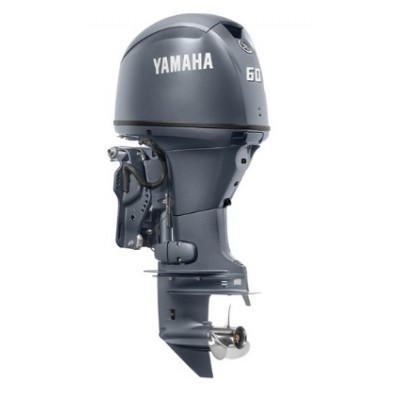

The Yamaha T60LC High Thrust is a 996cc four-cylinder engine engineered specifically for applications that require massive muscle over top-end speed. By utilizing a High-Torque Gearcase with a 2.33:1 gear ratio and a larger Dual Thrust™ propeller, this motor delivers significantly more forward and reverse thrust than a standard 60hp outboard. It is the definitive choice for heavy pontoons, sailboats, and commercial workboats where precise maneuvering and heavy-load displacement are critical.
Technical Specifications
| Model / MPN |
T60LC (High Thrust) |
| Engine Type |
4-Stroke, SOHC In-line 4-Cylinder |
| Displacement |
996 cc (60.8 ci) |
| Shaft Length |
20 Inches (Long Shaft) |
| Control Type |
Remote Mechanical (Remote Control) |
| Gear Ratio |
2.33:1 (High Thrust Optimized) |
| Alternator Output |
17 Amp |
| Dry Weight |
Approx. 262 lbs (119 kg) |
In The Box
- 1x Yamaha 60hp High Thrust Outboard Motor (T60LC)
- 1x Safety Lanyard
- 1x Owner's Manual and Factory Warranty Documentation
- *Note: Propeller, Remote Controls, and Gauges sold separately.
Frequently Asked Questions
1. How does the T60LC High Thrust gearcase differ from the standard F60?
The T60LC features a larger gearcase borrowed from the F70/F90 series and a 2.33:1 gear ratio. This allows it to swing a much larger propeller, converting more engine horsepower into direct thrust for heavy boats.
2. Is this motor compatible with Yamaha’s Command Link® gauges?
Yes. The T60LC is fully compatible with Yamaha’s Command Link® system, providing real-time data on fuel consumption, engine hours, and Variable Trolling RPM (VTS) control.
