Manufacturer Part Number (MPN)
1262-00

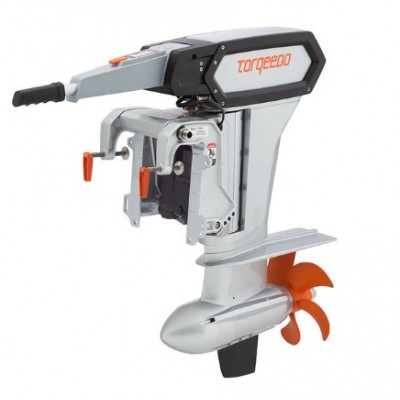

Electric Marine Specialist Insight: The Torqeedo Cruise 10.0 TL (MPN 1262-00) is the flagship of portable, high-power electric propulsion. Delivering a massive propulsive power equivalent to a 20 HP gasoline outboard, this 25-inch extra-long shaft model is engineered for large sailboats up to 10 tons and heavy displacement workboats. With a 48-volt system and a robust tiller-steer design, it offers a zero-emission, high-torque solution for mariners who refuse to compromise on power or environmental stewardship.
Industrial-Grade Electric Power for Heavy Vessels
The Torqeedo Cruise 10.0 TL (MPN: 1262-00) redefines the capabilities of electric boating. Designed for those who require tiller-steer precision, this motor features a heavy-duty, reinforced tiller with an integrated display that provides real-time GPS data. The 25-inch shaft length is essential for deep-transom vessels and sailboat motor wells, ensuring the high-efficiency propeller maintains grip in turbulent conditions.
This motor is built to withstand professional use. The pylon is constructed from seawater-resistant aluminum, and the entire system features IP67 waterproofing. Unlike combustion engines, the Cruise 10.0 TL provides its full 10kW of input power instantly, allowing for aggressive maneuvering and incredible stopping power—features that are vital when docking large vessels in wind or current. It is the ultimate maintenance-free alternative to traditional 20 HP outboards.
Technical Specifications
| Official MPN |
1262-00 |
| Input Power |
10,000 Watts (10 kW) |
| Gas Equivalent |
20 HP (Propulsive Power) |
| System Voltage |
48V DC |
| Shaft Length |
25" (Extra Long Shaft) |
| Weight |
Approx. 135 lbs (61.3 kg) |
| Tilt System |
Manual (with gas-pressure support) |
Cruise 10.0 TL Key Performance Features:
- Integrated GPS Computer: High-resolution display in the tiller handle provides speed, power consumption, and remaining range.
- Hydro-Electric Efficiency: Optimized pylon and propeller design for maximum thrust-to-power ratio.
- Reinforced Construction: Built with professional-grade materials for daily commercial or heavy leisure use.
- Zero Maintenance: No winterization, no oil changes, and no fuel degradation issues.
- Safe Operation: Magnetic kill switch and sophisticated battery management system communication (TorqBus).
Frequently Asked Questions
1. What battery setup is required for the 10.0 series?
The Cruise 10.0 requires a 48V power source. We recommend at least two Torqeedo Power 48-5000 lithium batteries for full power and optimal range.
2. Can I use this for coastal saltwater conditions?
Yes, the MPN 1262-00 is fully saltwater resistant, featuring sacrificial anodes and specialized coatings to protect the pylon and motor housing from corrosion.
Torqeedo Professional Partner | Verified Electric Marine Data | MPN: 1262-00
