Manufacturer Part Number (MPN)
000-12185-001
Marine Sonar Specialist Insight: The S2009 (MPN 000-12185-001) is a dedicated high-performance sonar engineered for the serious offshore angler and commercial captain. By utilizing a vertical 9-inch portrait display, it provides maximum vertical resolution for tracking the bottom and identifying individual fish targets in deep water. It is the definitive choice for those who want a stand-alone "bottom machine" that is free from the clutter of chartplotters, ensuring your eyes are always on the fish.
Dedicated Precision: Professional CHIRP Sonar

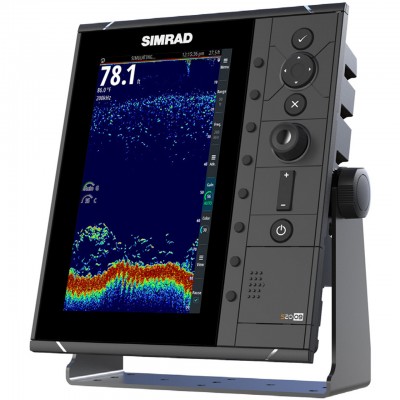

The Simrad S2009 (MPN: 000-12185-001) features a built-in high-power sonar module with Broadband Sounder™ and CHIRP technology. This combination allows for exceptional target separation and clarity from the surface down to extreme depths. The portrait-oriented 9-inch display is specifically designed for sonar applications, offering more pixels for the water column to reveal subtle bottom changes and predators holding tight to structure.
Equipped with Heave Compensation (when used with a compatible satellite compass), the S2009 eliminates the "vertical waviness" caused by rough sea states, providing a stable and accurate bottom picture. The intuitive interface includes direct-access keys for frequency, gain, and range, making it incredibly easy to fine-tune the image while navigating or trolling. Its rugged design and bracket or flush-mount options make it a perfect fit for open center consoles or enclosed pilothouses.
Technical Specifications
| Official MPN |
000-12185-001 |
| Display Size |
9-inch Portrait (480 x 800) |
| Sonar Technology |
Single-Channel CHIRP & Broadband |
| Transmit Power |
Up to 1kW (Transducer Dependent) |
| Frequencies |
50kHz, 83kHz, 200kHz & CHIRP (Low, Mid, High) |
| Networking |
NMEA 2000, NMEA 0183 & Ethernet |
| Waterproof Rating |
IPX7 |
S2009 Performance Features:
- Vertical Portrait Display: Optimized for sonar to provide maximum vertical depth history and resolution.
- CHIRP Technology: Sweeps multiple frequencies for superior target separation and noise-free imagery.
- High-Speed Gain Control: Rapidly adjust sensitivity to adapt to changing depths and sea conditions.
- White Line Feature: Helps distinguish between fish and the sea floor, essential for bottom-fishing.
- Ethernet Connectivity: Share sonar data with other Simrad NSS, NSO, or B&G Zeus displays on your network.
Frequently Asked Questions
1. Does this unit include a transducer?
No, MPN 000-12185-001 is the display and power cable only. This allows you to choose the best 600W or 1kW CHIRP transducer (Airmar or Simrad) for your specific hull and target species.
2. Can I use this for deep-water commercial fishing?
Yes. When paired with a 1kW low-frequency CHIRP transducer, the S2009 is an excellent tool for tracking the bottom and targets at depths exceeding 3,000 feet.
Marine Electronics Specialist | Verified Simrad Commercial Series Technical Data | MPN: 000-12185-001
