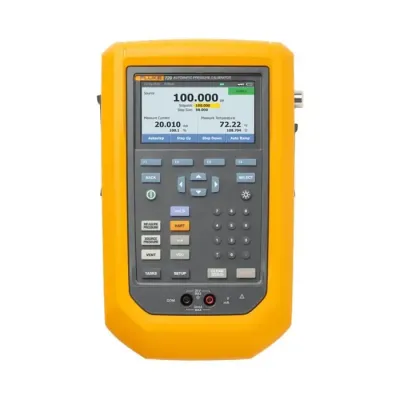

Fluke 729 300G FC Automatic Pressure Calibrator with Fluke Connect (300 psi, 20 bar)
Fluke 729 300G FC Automatic Pressure Calibrator with Fluke Connect (300 psi, 20 bar)
| Brand: | Fluke |
| Product Code: | 729 300G |
| Availability: | In Stock |
-
$9,322.53
- $11,368.95
Fluke 729 300G FC Automatic Pressure Calibrator, 300 psi / 20 Bar - 729-300G-FC
Description
The Fluke 729 300G FC is the ultimate high-pressure solution for automated field calibration. Featuring Fluke Connect® wireless integration and a fully automated internal pump, this calibrator generates and stabilizes pressure up to 300 psi (20 bar) automatically. Technicians simply enter the target pressure, and the 729 300G FC does the rest, providing laboratory-grade precision in any industrial environment.
Engineered for complex process maintenance, this unit includes built-in HART communication, allowing users to perform HART adjustments, re-ranging, and trimming directly from the device. With its ability to document calibration procedures automatically and sync data wirelessly via the Fluke Connect® app, the 729 300G FC dramatically improves workflow efficiency and data integrity for large-scale industrial operations.
Technical Specifications
| Pressure Range | -12 psi to 300 psi (-0.8 bar to 20 bar) |
| Pressure Generation | Fully Automatic Internal Pump |
| Pressure Accuracy | 0.02% of Full Scale |
| Wireless Connectivity | Fluke Connect® Compatible |
| HART Communication | Integrated (HART 5, 6, 7) |
| Current Measurement | 0 mA to 24 mA (0.015% Accuracy) |
| Control Stability | 0.005% of Full Scale |
| Loop Power Supply | 24V DC |
| Documenting Memory | Store up to 20 Test Strategies |
| Media Compatibility | Dry Air and Non-corrosive Gases |
| Weight | 6.5 lbs / 2.95 kg |
| Warranty | Three Years (Manufacturer) |
Features
- Automated Pressure Generation: High-performance pump reaches 300 psi without manual intervention.
- Fluke Connect® Integration: Share live measurements and save data directly to the cloud via smartphone.
- Built-in HART Modem: Communicate with and calibrate HART smart transmitters effortlessly.
- Automatic Documentation: Eliminates manual data entry by capturing and logging all calibration points.
- Leak Test Function: Automatically verifies system integrity and documents leak rates.
- High-Contrast Color Display: Easy-to-read interface even in bright sunlight or dark areas.
- Rugged Portability: Designed for one-handed carrying with a high-impact protective chassis.
Included in Package
- Fluke 729 300G FC Automatic Pressure Calibrator
- AC Charger and International Power Adapters
- USB Communication Cable
- TL75 Test Leads & AC175 Alligator Clips
- TP220 Test Probes & Stackable Test Leads
- NIST-Traceable Calibration Certificate
- Fluke Connect® Wireless Module
- Premium Carrying Case & Shoulder Strap
