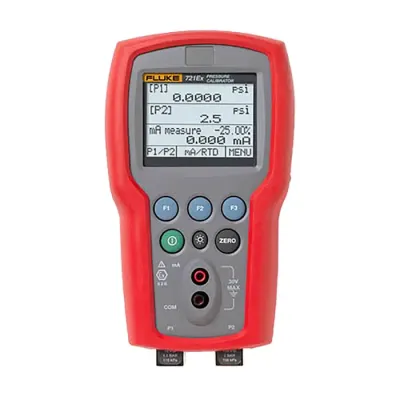

Fluke 721EX-1603 Intrinsically Safe Dual Sensor Precision Pressure Calibrator, 16/300 psi
Fluke 721EX-1603 Intrinsically Safe Dual Sensor Precision Pressure Calibrator, 16/300 psi
| Brand: | Fluke |
| Product Code: | 721EX-1603 |
| Availability: | In Stock |
-
$2,910.76
- $3,549.71
Fluke 721Ex-1603 Intrinsically Safe Dual Sensor Precision Pressure Calibrator - 721EX-1603
Description
The Fluke 721Ex-1603 is an Intrinsically Safe dual sensor pressure calibrator specifically designed for gas custody transfer applications. Certified for use in explosive gas environments (ATEX/IECEx), it allows technicians to perform high-precision calibration in hazardous areas without compromising safety. Featuring two isolated stainless steel pressure sensors, it simultaneously measures low and high pressure with a single, rugged handheld tool.
The 1603 model is equipped with a low-pressure sensor of 16 psi (1.1 bar) and a high-pressure sensor of 300 psi (20 bar). This configuration makes it ideal for gas flow computer calibration and general pressure maintenance. Its large backlit display shows both pressure readings and temperature simultaneously, while the Pt100 RTD input allows for even greater accuracy in calculating gas flow corrections.
Technical Specifications
| Safety Certification | ATEX II 1G Ex ia IIB T3 Ga / IECEx |
| Low Pressure Sensor (P1) | -12 psi to 16 psi (-0.83 to 1.1 bar) |
| High Pressure Sensor (P2) | -12 psi to 300 psi (-0.83 to 20 bar) |
| Pressure Accuracy | 0.025% of Full Scale |
| Current Measurement | 0 mA to 24 mA (0.001 mA resolution) |
| RTD Temperature Input | -40°C to 150°C (Requires Fluke 720RTD) |
| Voltage Measurement | 0 to 30V DC |
| Pressure Connections | 1/4" NPT Female |
| Operating Temperature | -10°C to 45°C |
| Dimensions | 7.9" x 4.3" x 2.3" (200 x 110 x 58 mm) |
| Weight | 1.2 lbs / 0.54 kg |
| Warranty | Three Years (Manufacturer) |
Features
- Intrinsically Safe (Ex): IECEx and ATEX compliant for Zone 0 hazardous areas
- Dual Isolated Sensors: Simultaneous measurement of two pressure ranges
- High Precision: 0.025% accuracy on both sensors for critical custody transfer
- Flow Computer Testing: Ideal for gas flow computer calibration and maintenance
- Pt100 RTD Input: Precision temperature measurement (probe sold separately)
- Durable Design: Rugged case with protective holster for extreme field use
- NIST-Traceable: Includes calibration certificate for quality compliance
Included in Package
- Fluke 721Ex-1603 Dual Sensor Pressure Calibrator
- Soft Carrying Case
- TL75 Test Leads & Alligator Clips
- NIST-Traceable Calibration Report
- Four (4) AA Alkaline Batteries
- Quick Reference Guide & User Manual
