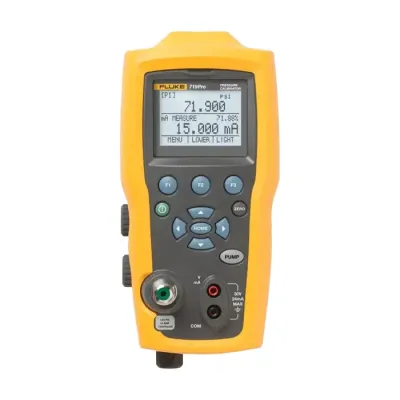

Fluke 719PRO-150G Electric Pressure Calibrator, -12 to 150 psi
Fluke 719PRO-150G Electric Pressure Calibrator, -12 to 150 psi
| Brand: | Fluke |
| Product Code: | 719PRO-150G |
| Availability: | In Stock |
-
$3,850.57
- $4,695.82
Fluke 719PRO-150G Electric Pressure Calibrator, -12 to 150 psi - 719PRO-150G
Description
The Fluke 719PRO-150G is a high-performance electric pressure calibrator designed to optimize workflow by eliminating manual pumping. Featuring a built-in electric pump, it allows for effortless, one-handed pressure generation up to 150 psi (10 bar). This unit is the perfect "middle-ground" solution for technicians who need more range than the 30G model but don't require the full 300 psi capacity.
Equipped with a high-precision loop calibrator, the 719PRO-150G can measure, source, and simulate 4-20 mA signals while simultaneously providing 24V loop power to the transmitter under test. Its large backlit display and programmable safety limits ensure that calibration tasks are performed accurately and safely, even in dark or cramped industrial environments.
Technical Specifications
| Pressure Range | -12 psi to 150 psi (-0.8 bar to 10 bar) |
| Pump Generation | Automatic Electric Pump |
| Pressure Accuracy | 0.025% of Full Scale |
| Current Measurement | 0 mA to 24 mA (0.015% Accuracy) |
| Current Source/Simulate | 0 mA to 24 mA |
| Loop Power | 24V DC |
| Pressure Resolution | 0.01 psi / 0.001 bar |
| Temperature Measurement | -50°C to 150°C (with 720RTD probe) |
| Maximum Overpressure | 300 psi |
| Pressure Connection | 1/4" NPT Female |
| Weight | 2.6 lbs / 1.2 kg |
| Dimensions | 9.5" x 4.4" x 2.8" (241 x 111 x 70 mm) |
| Warranty | Three Years (Manufacturer) |
Features
- Effortless Pumping: Integrated electric pump eliminates physical strain and speeds up calibration.
- One-Handed Operation: Small enough to hold and operate with one hand while on a ladder or in tight spaces.
- Custom Safety Limits: Programmable pump limits to protect equipment from accidental over-pressure.
- Precision Control: Fine-adjustment vernier allows for exact pressure target matching.
- Smart Switch Testing: Captures set, reset, and deadband points for rapid switch verification.
- Field Ready: Rugged construction with pump clean-out ports to protect against fluid contamination.
- Quality Certified: Ships with NIST-traceable calibration certificate for immediate professional use.
Included in Package
- Fluke 719PRO-150G Electric Pressure Calibrator
- TL75 Test Leads & AC175 Alligator Clips
- NIST-Traceable Calibration Certificate
- Fluid Trap Filter (to keep the electric pump clean)
- Eight (8) AA Alkaline Batteries
- User Manual & Padded Carrying Case
