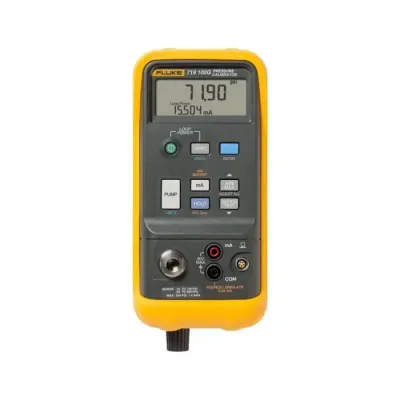

Fluke 719 100G Electric Pressure Calibrator, -12 to 120 psi
Fluke 719 100G Electric Pressure Calibrator, -12 to 120 psi
| Brand: | Fluke |
| Product Code: | 719 100G |
| Availability: | In Stock |
-
$3,657.62
- $4,460.52
Fluke 719 100G Electric Pressure Calibrator, -12 to 120 psi - 719-100G
Description
The Fluke 719 100G Electric Pressure Calibrator is the ultimate field solution for high-accuracy pressure testing without the physical effort of manual pumping. Equipped with a powerful internal electric pump, it allows for seamless, one-handed pressure generation up to 120 psi (8 bar). This unit is specifically designed for process technicians who require rapid, precise calibration of transmitters, gauges, and switches in the field.
With an outstanding 0.025% pressure measurement accuracy, the 719 100G functions as a complete calibration station. It simultaneously measures mA while providing 24V loop power to the device under test. The built-in programmable pump limit settings offer critical safety by preventing accidental over-pressurization, while its compact and rugged design ensures reliability in the most demanding industrial environments.
Technical Specifications
| Pressure Range | -12 psi to 120 psi (-0.8 bar to 8 bar) |
| Pump Mechanism | Integrated Electric Pump (Automatic) |
| Pressure Accuracy | 0.025% of Full Scale |
| mA Measurement | 0 mA to 24 mA (0.015% Accuracy) |
| Loop Power Supply | 24V DC |
| Pressure Resolution | 0.01 psi / 1 mbar |
| Maximum Overpressure | 200 psi |
| Media Compatibility | Non-corrosive Gases only |
| Pressure Connection | 1/8" NPT Female |
| Dimensions | 8.2" x 3.4" x 2.1" (210 x 87 x 53 mm) |
| Weight | 2.1 lbs / 0.95 kg |
| Warranty | Three Years (Manufacturer) |
Features
- Automatic Electric Pumping: One-button pressure generation up to 120 psi eliminates manual fatigue.
- Simultaneous mA Measurement: Measure current while powering transmitters with built-in 24V loop power.
- User-Defined Safety Limits: Programmable pump limits to protect sensitive equipment from over-pressure.
- Fine-Adjustment Vernier: Integrated mechanical control for hitting exact pressure targets.
- Pressure Switch Test: Specialized function to capture set and reset points with high precision.
- Field Serviceable: Includes clean-out ports to protect the pump from moisture and dirt damage.
- NIST-Traceable: Delivered with a full calibration certificate for immediate professional compliance.
Included in Package
- Fluke 719 100G Electric Pressure Calibrator
- Protective Yellow Holster
- TL75 Test Leads & AC175 Alligator Clips
- NIST-Traceable Calibration Certificate
- Push-to-connect pressure fitting
- Two (2) 9V Alkaline Batteries
- User Manual & Padded Carrying Case
