Fluke 717 1000G Pressure Calibrator, 0 to 1000 psi, 0.05% Accuracy
Fluke 717 1000G Pressure Calibrator, 0 to 1000 psi, 0.05% Accuracy
| Brand: | Fluke |
| Product Code: | 717 1000G |
| Availability: | In Stock |
-
$1,740.81
- $2,122.95

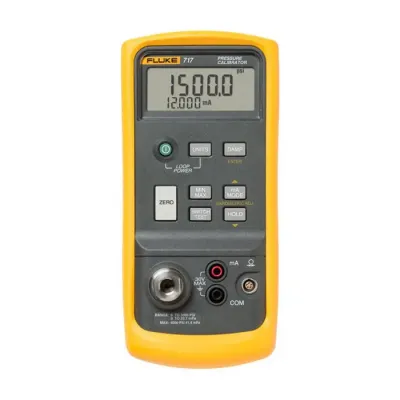

Fluke 717 1000G Pressure Calibrator (0 to 1000 psi)
Description
The Fluke 717 1000G Pressure Calibrator is a high-precision tool designed for technicians who require reliable pressure measurements in demanding industrial environments. With an internal sensor capable of measuring up to 1000 psi, it provides an accuracy of 0.05% of full scale, making it ideal for the calibration and maintenance of pressure transmitters, gauges, and switches. Its compact, handheld design ensures ease of use in the field without compromising on professional performance.
This calibrator is not only built for pressure; it also measures 0 to 24mA current signals and provides 24V loop power to transmitters under test. The 717 1000G is fully compatible with Fluke 750P and 700P pressure modules, allowing you to easily scale your measurement capabilities. Durable, reliable, and NIST-traceable, the Fluke 717 1000G is the industry standard for high-pressure field calibration.
Technical Specifications
| Measurement Range | 0 to 1000 psi (0 to 68.9 bar) |
| Pressure Accuracy | 0.05% of Full Scale |
| Pressure Resolution | 0.1 psi / 0.01 bar |
| Current (mA) Measurement | 0 to 24 mA (0.015% + 2 accuracy) |
| Loop Power | 24V DC |
| Compatible Media | Non-corrosive Gases and Liquids |
| Max Overpressure | 2x Full Scale |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Weight | 1.3 lbs / 0.6 kg |
| Safety Rating | CSA C22.2 No. 1010.1:1992 |
Advanced Features
- Pressure switch test function captures set, reset, and deadband
- Min/Max/Hold functions to track peak values and freeze readings
- Zeroing function to compensate for pressure offsets in the field
- Large backlit display for clear reading in low-light conditions
- Rugged 1-meter drop rating with protective yellow holster
- Compatibility with 50+ Fluke 750P pressure modules
Included in Box
- Fluke 717 1000G Pressure Calibrator
- Yellow Protective Holster
- Test Leads (TL75) and Alligator Clips (AC72)
- Single 9V Alkaline Battery
- NIST Traceable Calibration Certificate
- Quick Reference Instruction Sheet
