Verified technical data for the F40 platform. This model is factory-equipped with an ergonomic multi-function tiller handle and integrated Power Trim and Tilt.

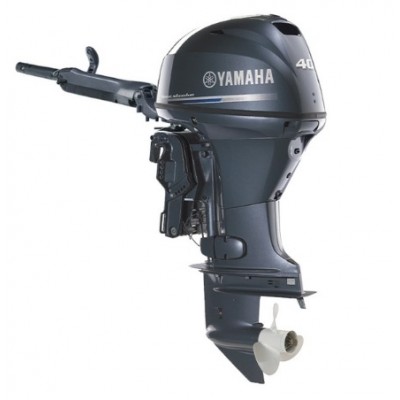

The Yamaha F40LEHA is a high-performance 747cc three-cylinder outboard motor designed for operators who require precise hand-control. This model features a factory-installed Multi-Function Tiller Handle, which integrates the engine stop switch, throttle friction, and Power Trim and Tilt controls directly at the pilot's fingertips. With Electronic Fuel Injection (EFI) and a long 20-inch shaft, the F40LEHA delivers smooth acceleration and exceptional fuel economy for mid-sized aluminum fishing boats and utility vessels.
Technical Specifications
| Manufacturer Part Number (MPN) |
F40LEHA |
| Engine Type |
4-Stroke, SOHC In-line 3-Cylinder |
| Displacement |
747 cc (45.6 ci) |
| Shaft Length |
20 Inches (Long Shaft) |
| Control Type |
Multi-Function Tiller Handle |
| Trim and Tilt System |
Power Trim and Tilt |
| Alternator Output |
17 Amp |
| Dry Weight |
Approx. 231 lbs (105 kg) |
In The Box
- 1x Yamaha 40hp Outboard Motor (F40LEHA)
- 1x Multi-Function Tiller Handle (Factory Installed)
- 1x Integrated Power Trim and Tilt System
- 1x Emergency Safety Lanyard
- 1x Owner's Manual and Factory Warranty Documentation
- *Note: Propeller and External Fuel Tank are typically sold separately.
Frequently Asked Questions
1. Can I adjust the trolling speed on the F40LEHA?
Yes. This model features the Variable Trolling RPM Switch (VTS™) on the tiller handle, allowing you to adjust engine speed in 50-RPM increments from 650 to 900 RPM for precise lure presentation.
2. Does the tiller handle include a trim switch?
Yes, the integrated Multi-Function Tiller handle includes a convenient thumb-operated Power Trim and Tilt switch, allowing you to adjust the motor's angle without taking your hand off the tiller.
