⚓ Marine Engineering Specialist: Verified High-Capacity Technical Data.
Model 1358316 is engineered for deep-V hulls and large vessels, integrating high-resolution MEGA Down Imaging (MDI) and the One-Boat Network navigation ecosystem.

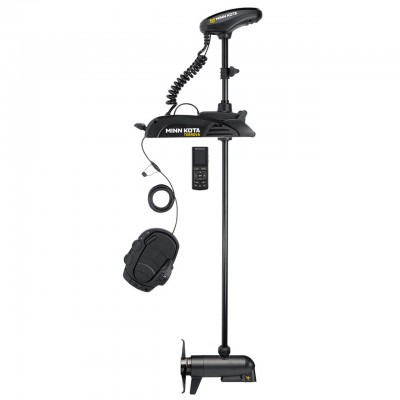

The Minn Kota Terrova 112 (1358316) represents the pinnacle of the brushed Terrova series, specifically designed for boats with high bows that require extra stability in rough water. Utilizing a 36-Volt system to generate 112 lbs of thrust, this motor features Built-In MEGA Down Imaging (MDI), integrated directly into the lower unit for crystal-clear underwater structure visuals without external cabling. The latest Advanced GPS system provides surgical precision through Spot-Lock®, Drift Mode, and automated navigation synced with Humminbird units.
Technical Specifications
| Part Number (MPN) |
1358316 |
| Max Thrust Level |
112 lbs |
| System Voltage |
36V DC |
| Shaft Length |
72 Inches (183 cm) |
| Integrated Sonar |
Built-In MEGA Down Imaging (MDI) |
| GPS Navigation |
Advanced GPS (Bluetooth Compatible) |
| Max Amp Draw |
52 Amps |
| Propeller |
Weedless Wedge 2 (MKP-38) |
In The Box
- 1x Terrova 112 lb. 72" Motor w/ Built-In MDI Sonar
- 1x Advanced GPS Wireless Remote & Lanyard
- 1x Corded Electric Foot Pedal
- 1x Bluetooth Heading Sensor
- 1x MKP-38 Prop & Mounting Hardware
- 1x Ethernet Extension Cable (30') & Adapter Cables
Frequently Asked Questions
1. Is MDI sonar compatible with non-Humminbird fish finders?
No. Built-in MEGA Down Imaging is exclusive to Humminbird HELIX (G3N/G4N and newer) or SOLIX/APEX units. While 2D sonar can sometimes be adapted, MDI technology is proprietary to the One-Boat Network.
2. Why is a 72" shaft necessary?
A 72" shaft is critical for large deep-V boats or center consoles operating in heavy swell. It ensures the lower unit remains submerged during pitching to prevent propeller cavitation and loss of control.
