Manufacturer Part Number (MPN)
1368900
Marine Engineering Specialist Insight: The Ultrex QUEST (MPN 1368900) is the ultimate evolution of the tournament-winning Ultrex platform. By combining a **brushless motor** with the physical "cable-steer" connection, this 45-inch model offers 50% more torque and significantly longer run times, allowing pro anglers to dominate heavy cover and current with silent, relentless power.
The Brushless Hybrid Revolution

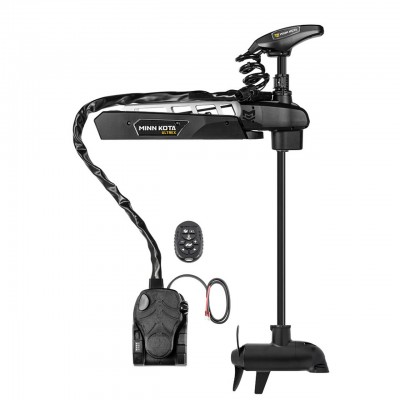

The Minn Kota Ultrex QUEST (MPN: 1368900) represents the pinnacle of boat control technology. It maintains the legendary, tactile "heel-toe" response that bass anglers demand, but replaces the traditional motor with a massive **QUEST Brushless lower unit**. This dual-voltage system automatically senses your power source, delivering 90 lbs of thrust at 24V or a staggering 115 lbs at 36V.
With its reinforced 45-inch shaft, the Ultrex QUEST is built to handle the extreme torque of a high-output brushless system. Integrated **Dual Spectrum CHIRP (DSC)** sonar provides high-resolution Humminbird 2D imaging without external wires. This model includes the **Micro Remote**, providing a compact, streamlined way to engage **Spot-Lock®** and manage your speed from anywhere on the deck.
Technical Specifications
| Official MPN |
1368900 |
| Motor Type |
QUEST Brushless Series |
| Thrust Level |
90 lbs (24V) / 115 lbs (36V) |
| Shaft Length |
45 Inches (114 cm) |
| Integrated Sonar |
Built-In Dual Spectrum CHIRP (DSC) |
| Steering Architecture |
Power Steering (Foot Pedal with Tactile Connection) |
| GPS Controller |
Micro Remote (Advanced GPS Compatible) |
The QUEST Advantage:
- Brushless Efficiency: Experience up to 30% longer run times and a 50% increase in torque compared to brushed motors.
- Steering Lock: Maintain your motor heading automatically when you take your foot off the pedal.
- Spot-Lock with Jog: The industry's most accurate GPS anchor keeps you locked on coordinates with faster brushless response.
- Real-Time Battery Monitoring: View precise battery telemetry and "time-to-empty" data on your Humminbird or remote.
- Reinforced Bracketry: Redesigned hardware to manage the massive 115 lbs of brushless thrust for extreme durability.
Frequently Asked Questions
1. Can the Ultrex QUEST MPN 1368900 run on a 24V system?
Yes. The QUEST series features auto-sensing technology. If connected to a 24V bank, it will provide 90 lbs of thrust; if connected to a 36V bank, it increases output to 115 lbs.
2. Is the foot pedal different from the standard Ultrex?
The foot pedal has been redesigned to accommodate the QUEST series features, but it maintains the same legendary heel-toe feel that Ultrex is famous for.
Marine Engineering Specialist | Verified Minn Kota Ultrex QUEST Technical Data | MPN: 1368900
