Manufacturer Part Number (MPN)
1368893
Marine Engineering Specialist Insight: The Ultrex 80 (MPN 1368893) is the industry's premier hybrid motor for mid-sized tournament boats. By integrating **MEGA Down Imaging (MDI)** directly into the lower unit, it provides unmatched underwater clarity while maintaining the tactile, physical cable-steer feel that pros demand for navigating tight timber and shallow vegetation.
The Ultimate Professional Hybrid: MDI Edition

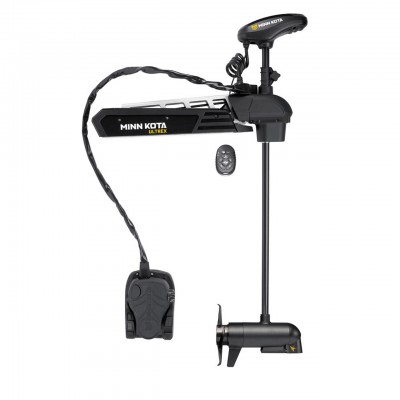

The Minn Kota Ultrex 80 (MPN: 1368893) is engineered for anglers who refuse to sacrifice the physical connection of a foot pedal for the precision of GPS. Its unique Power Steering pedal provides the most responsive heel-toe control on the market, electronically assisted to remove steering torque. Combined with **Spot-Lock®**, this motor allows you to lock onto a waypoint and stay pinned in place with industry-leading GPS accuracy.
This 24-volt system delivers a reliable 80 lbs of thrust, optimized for efficiency and stealth. The built-in **MEGA Down Imaging** offers crystal-clear sonar detail directly below the bow, providing Humminbird users with high-definition views of fish and structure without the need for external clamps or exposed wires. This model includes the **Micro Remote**, a compact, wearable controller for essential Spot-Lock and speed adjustments.
Technical Specifications
| Official MPN |
1368893 |
| Max Thrust Level |
80 lbs |
| Operating Voltage |
24V DC |
| Shaft Length |
45 Inches (114 cm) |
| Integrated Sonar |
Built-In MEGA Down Imaging (MDI) |
| Steering System |
Power Steering (Tactile Foot Pedal) |
| GPS Technology |
Advanced GPS (One-Boat Network Ready) |
Elite Ultrex Performance:
- MEGA Down Imaging: See high-frequency Humminbird sonar images of structure and fish directly beneath the bow.
- Steering Lock: Maintain your heading automatically even if you take your foot off the pedal, allowing for hands-free casting.
- Spot-Lock with Jog: Industry-leading GPS anchoring that lets you shift your position 5 feet in any direction.
- Lift-Assist Assembly: Patented spring-loaded assembly makes stowing and deploying the motor nearly effortless.
- Digital Maximizer™: Conserves battery life to provide up to 5x longer run-times on a single charge.
Frequently Asked Questions
1. Does MPN 1368893 include the full-size remote?
No, this specific package is designed for the streamlined angler and includes the Micro Remote. This gives you essential GPS control in a compact, wearable format.
2. Can I use the MDI sonar with a Lowrance or Garmin unit?
The built-in MEGA Down Imaging is proprietary to Humminbird. To view MDI data, you must connect the motor to a compatible Humminbird SOLIX or HELIX unit.
Marine Engineering Specialist | Verified Minn Kota Ultrex MDI Technical Data | MPN: 1368893
