⚓ Marine Automation Specialist: Verified QUEST Series Technical Data.
Model 1358200 is the compact 45-inch brushless variant, engineered for maximum torque and thermal efficiency in shallow-water or low-profile boat applications.
The Minn Kota Terrova QUEST 90/115 (1358200) represents the next evolution in freshwater trolling motor technology. This model features a completely redesigned Brushless 24V/36V motor, delivering up to 50% more torque and significantly increased run times compared to traditional brushed systems. This 45-inch shaft version is integrated with Dual Spectrum CHIRP (DSC) sonar, providing professional-grade clarity for Humminbird users. With Advanced GPS capabilities and the One-Boat Network® integration, this motor offers surgical precision for boat control and positioning.
Technical Specifications
| Part Number (MPN) |
1358200 |
| Max Thrust Level |
90 lbs (24V) / 115 lbs (36V) |
| System Voltage |
24V or 36V DC (Automatic Selection) |
| Shaft Length / Material |
45" / Carbon Fiber Reinforced Composite |
| Motor Technology |
Brushless / High-Torque |
| Integrated Sonar |
Dual Spectrum CHIRP (DSC) |
| Max Amp Draw |
58 Amps |
| Propeller |
Power Prop (MKP-40) |
In The Box

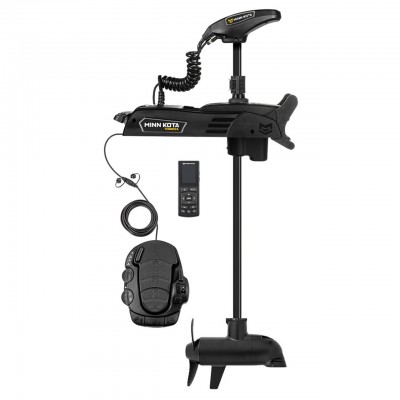

- 1x Terrova QUEST 90/115 lb. 45" Motor with Built-In DSC Sonar
- 1x Advanced GPS Wireless Remote & Lanyard
- 1x Heel-Toe Programmable Electric Foot Pedal
- 1x MKP-40 Power Prop & Mounting Hardware
- 1x Ethernet Networking Cable (30') & Adapter Bundle
Frequently Asked Questions
1. What is the real-world advantage of Brushless (QUEST) technology?
Beyond increased battery life, brushless motors produce significantly less electrical "noise" (interference) on sonar screens and provide constant thrust even as battery voltage begins to drop, unlike traditional brushed motors.
2. Does this model require a separate Heading Sensor?
No. The QUEST series features integrated technology in the motor head that handles all heading and GPS navigation functions internally, simplifying the One-Boat Network® installation.
