Manufacturer Part Number (MPN)
000-14535-001
Marine Radar Specialist Insight: The HALO24 (MPN 000-14535-001) is the industry benchmark for compact radome performance. It is the first 24-inch dome to offer an industry-leading 60 RPM rotation speed, providing a near-real-time view of your surroundings. Combined with VelocityTrack™ Doppler for instant collision hazard assessment, it is the definitive choice for fast-moving offshore vessels where situational awareness at speed is paramount.
The Ultimate View: Safety in Real-Time

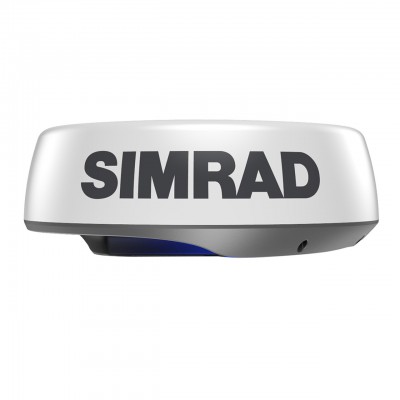

The Simrad HALO24 (MPN: 000-14535-001) revolutionizes radar performance for recreational and commercial mariners alike. By utilizing advanced pulse compression technology, it delivers high-definition imaging from as close as 6 meters (20 feet) to as far as 48 nautical miles. Whether you are scouting for birds in the deep blue or navigating a dense fog bank in a high-traffic harbor, the HALO24 provides the clarity and update speed required for total confidence at the helm.
A core advantage of the HALO24 is the VelocityTrack™ Doppler technology. This system automatically color-codes radar echoes to highlight moving targets—marking approaching threats in yellow and retreating targets in blue. When combined with the ultra-fast 60 RPM sweep, the HALO24 eliminates the "jumpy" target updates found on traditional radars, providing a fluid and intuitive display of maritime traffic.
Technical Specifications
| Official MPN |
000-14535-001 |
| Radar Technology |
Solid-State Pulse Compression with Doppler |
| Max Range Scale |
48 Nautical Miles |
| Rotation Speed |
Up to 60 RPM (Target Dependent) |
| Beam Width |
3.9° Horizontal (With Target Separation) |
| Power Consumption |
20W (Typical) / 29W (Max) |
| Network Connectivity |
Ethernet via Simrad/B&G Network Ports |
HALO24 Elite Performance Features:
- VelocityTrack™ Doppler: Immediate visual identification of moving hazards to prevent collisions.
- Ultra-Fast 60 RPM Operation: Delivers the fastest target updates in the radome category for high-speed coastal runs.
- True Dual Range: Simultaneously monitor two range scales on a split-screen—ideal for long-range weather and close-in navigation.
- Bird Mode: Specialized signal processing identifies bait-feeding birds at a distance for tournament-grade fishing results.
- Instant-On Navigation: Solid-state technology eliminates magnetron warm-up; ready for deployment in seconds.
Frequently Asked Questions
1. Why should I choose the HALO24 over the HALO20+?
The HALO24 (MPN 000-14535-001) features a larger antenna that provides a tighter 3.9° beam width (vs 4.9° on the 20"). This results in significantly better target separation and a longer 48nm range.
2. Is this compatible with B&G Zeus systems?
Yes. The HALO24 is a Navico shared platform and is fully compatible with B&G Zeus 3/3S and Zeus S series, as well as Simrad NSS evo3/evo3S, NSX, and NSO systems.
Marine Electronics Specialist | Verified Simrad HALO Series Technical Data | MPN: 000-14535-001
