Manufacturer Part Number (MPN)
T-941A

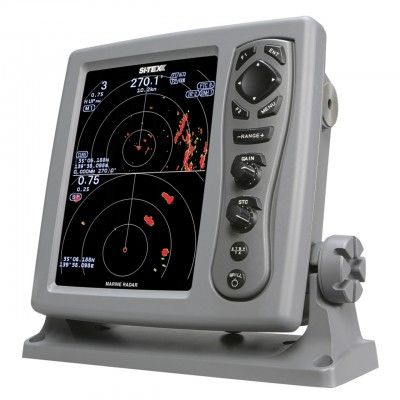

Marine Radar Specialist Insight: The SI-TEX T-941A (MPN T-941A) is a professional-grade stand-alone radar system designed for workboats, commercial fishing vessels, and offshore cruisers. By utilizing a 25-inch radome with a powerful 4kW transmitter, it offers superior target detection in heavy rain and fog. The 8.5-inch portrait-oriented display provides an exceptionally long look-ahead view, which is critical for safe navigation in narrow channels and high-traffic shipping lanes.
Dedicated Performance: Stand-Alone Radar Reliability
The SI-TEX T-941A (MPN: T-941A) is engineered for mariners who demand a dedicated radar display that isn't cluttered by chartplotter data. This system features a brilliant 8.5-inch sunlight-viewable color LCD that provides high-resolution imaging from a minimum range of 1/16th of a mile to a maximum of 36 nautical miles. Its 4kW output ensures that small targets—such as buoys, birds, and small watercraft—are identified clearly even in challenging sea states.
Equipped with ATA (Automatic Tracking Aid), the T-941A allows the captain to track up to 50 targets simultaneously, providing instant data on target heading, speed, and closest point of approach (CPA). The system also features True Trail technology, which clearly distinguishes moving vessels from stationary landmasses by displaying a "ghost" trail behind moving targets, making it much easier to assess collision risks at a glance.
Technical Specifications
| Official MPN |
T-941A |
| Radar Power Output |
4kW |
| Antenna Type |
25-Inch (64cm) Radome |
| Display Size |
8.5" Color LCD (Portrait Orientation) |
| Range Scales |
1/16 to 36 Nautical Miles |
| Beam Width |
Horizontal: 4.7° / Vertical: 25° |
| Power Input |
10.8V to 31.2V DC |
SI-TEX T-941A Elite Radar Features:
- Automatic Tracking Aid (ATA): Track up to 50 targets to maintain high situational awareness in crowded harbors.
- True Trail Technology: Identifies moving targets by their distinctive trails, separating them from stationary land and buoys.
- Off-Center Display Mode: Shifts the center of the radar sweep to provide an even greater look-ahead range in the direction of travel.
- Dual Guard Zones: Set audible alarms for targets entering or exiting specific areas around your vessel.
- AIS Interface Ready: When connected to an optional AIS receiver, it displays AIS target symbols directly on the radar screen.
Frequently Asked Questions
1. Why choose a stand-alone radar like the T-941A over an MFD?
Commercial mariners often prefer stand-alone units for their reliability and ease of use. If your multifunction display fails, you still have your primary navigation safety tool (radar) functional on its own dedicated power source.
2. Is the cable included in this package?
Yes, the SI-TEX T-941A system (MPN T-941A) typically includes a 10-meter interconnect cable to link the 25-inch radome to the 8.5-inch color display.
