Manufacturer Part Number (MPN)
T70243
Marine Electronics Specialist Insight: The Quantum Q24C (MPN T70243) was the pioneer of solid-state radar technology. By replacing the heavy, power-hungry magnetron with CHIRP Pulse Compression, Raymarine created a radar that is ready instantly—no warm-up required. This bundle is the "Installer's Choice," providing both 10M power and 10M data cables for a rock-solid wired connection, though its built-in Wi-Fi makes it incredibly versatile for sailboats and complex retrofits.
The New Standard in Compact Radar Performance

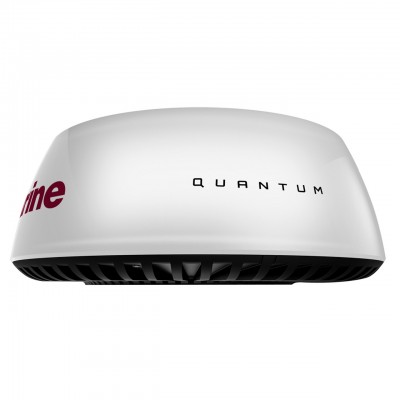

The Raymarine Quantum Q24C (MPN: T70243) represents a massive leap forward from traditional radar systems. Utilizing solid-state technology, it provides superior target separation at both long and extremely short ranges. Whether you are navigating through a dense fog bank or trying to identify a small buoy 20 feet away, the Quantum’s CHIRP technology ensures every target is returned with photographic clarity.
This T70243 package is a comprehensive retail bundle. Unlike the "no-cable" versions, this kit includes a 10-meter power cable and a 10-meter RayNet data cable, ensuring you have everything needed for a standard installation. Weighing 50% less than traditional radars and consuming significantly less power, the Quantum Q24C is the perfect companion for cruisers, offshore anglers, and blue-water sailors alike.
Technical Specifications
| Official MPN |
T70243 |
| Radar Technology |
Solid-State CHIRP Pulse Compression |
| Range Scale |
24 Nautical Miles |
| Cabling Included |
10M Power & 10M RayNet Data Cables |
| Connection Type |
Wireless (Wi-Fi) & Wired (Ethernet) |
| Power Consumption |
17W (Transmit) / 7W (Standby) |
| Weight |
5.6 kg (12.3 lbs) |
Quantum Q24C Elite Features:
- CHIRP Pulse Compression: Delivers high-definition imaging and identifies small, weak targets even when positioned near strong returns.
- Instant-On Ready: Say goodbye to the 2-3 minute microwave warm-up; the solid-state Quantum is ready to scan in seconds.
- Dual Connection Options: Use the integrated Wi-Fi for a clean, wire-free data install or the included 10M cable for a high-speed RayNet connection.
- Ultra-Low Power Usage: Ideal for battery-conscious boaters, drawing significantly less current than traditional magnetron radars.
- Simplified Installation: The small diameter power cable is much easier to route through towers and masts than legacy radar bundles.
Frequently Asked Questions
1. Does the Q24C support Doppler target tracking?
No. The Q24C is the standard Quantum CHIRP radar. If you require Doppler color-coded target processing (Red/Green targets), you should look at the **Quantum 2 Q24D** series.
2. Can I use the Wi-Fi if my display is mounted far away?
Yes, the Wi-Fi signal is designed for marine environments, but for the most reliable connection on larger vessels or through thick bulkheads, we recommend using the 10M RayNet data cable included in this T70243 bundle.
Marine Electronics Specialist | Verified Raymarine Quantum Series Technical Data | MPN: T70243
