Manufacturer Part Number (MPN)
T70416
Marine Electronics Specialist Insight: The Quantum 2 (MPN T70416) is the definitive choice for captains who prioritize safety and ease of use. By utilizing Doppler target processing, it instantly identifies and color-codes moving radar contacts—red for approaching threats and green for retreating targets. This package includes the 10M power and data cable kit, making it the standard "plug-and-play" solution for most center consoles, cruisers, and sailboats.
Superior Situational Awareness in Any Condition

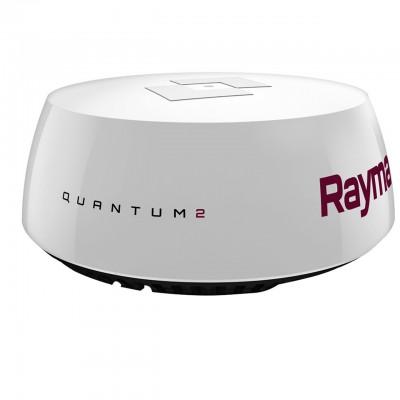

The Raymarine Quantum 2 Q24D (MPN: T70416) is a solid-state radome designed to provide high-definition imaging from as close as 18 feet to as far as 24 nautical miles. Unlike traditional radars that require a manual "reading" of the screen, the Quantum 2's Doppler technology does the heavy lifting for you. It automatically distinguishes between stationary objects and moving vessels, highlighting dangerous incoming targets in red so you can make informed navigation decisions in seconds.
This system uses CHIRP Pulse Compression to ensure maximum energy reaches each target, providing superior separation and detail even in heavy rain or sea clutter. With Instant-On technology, the radar is ready to scan the moment you need it, with no warm-up period required. This package (T70416) is the complete retail solution, providing the necessary 10-meter cabling for a secure, wired RayNet and power installation.
Technical Specifications
| Official MPN |
T70416 |
| Radar Technology |
Solid-State Next-Gen Doppler |
| Peak Range |
24 Nautical Miles |
| Cabling Included |
10-Meter Power and Data Kit |
| Target Tracking |
Fully Automatic MARPA (25 Targets) |
| Connectivity |
RayNet Ethernet & Integrated Wi-Fi |
| Operating Voltage |
12V / 24V DC |
Quantum 2 Doppler Elite Features:
- Doppler Target Color-Coding: Instantly distinguish between approaching (dangerous) and retreating (safe) targets.
- Fully Automatic MARPA: The system automatically acquires and tracks targets, reducing captain workload.
- CHIRP Pulse Compression: Exceptional target separation and detection of small objects in sea clutter.
- Instant-On Performance: Solid-state technology eliminates the wait time for magnetron warm-up.
- Ultra-Low Power Design: High-efficiency operation preserves battery life, essential for sailboats and long-range cruisers.
Frequently Asked Questions
1. Is the 10M cable sufficient for my installation?
The 10M (approx. 33ft) cable is the industry standard for most vessels up to 35 feet. For larger vessels with high towers or complex routing, a 15M version (T70417) is available.
2. Which Raymarine displays support the T70416?
Quantum 2 is compatible with all Raymarine Axiom, Axiom Pro, Axiom 2 Pro, and Axiom XL displays running the LightHouse 3 or LightHouse 4 operating systems.
