Manufacturer Part Number (MPN)
E70487
Marine Electronics Specialist Insight: The Magnum 12kW Pedestal (MPN E70487) is the high-power heart of Raymarine's professional-grade open array systems. Engineered for offshore anglers and long-distance cruisers, this 12kW unit provides the raw power needed to punch through heavy weather and locate small targets at extreme ranges. It is the definitive choice for those who require the industry's best Bird Mode for locating distant feeding bait balls.
Magnum Power: Long-Range Scouting & Bird Finding

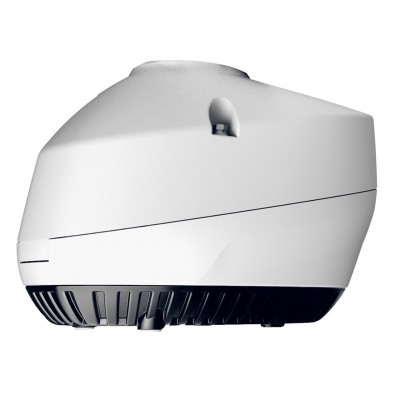

The Raymarine Magnum 12kW Pedestal (MPN: E70487) brings tournament-level radar performance to your vessel. Utilizing the same high-output technology trusted by the U.S. Coast Guard, the Magnum series delivers superior target separation and high-definition detail. At 12kW, this pedestal offers the perfect balance of power and precision, allowing you to track weather cells and shorelines up to 96 nautical miles away.
For the serious offshore fisherman, the Magnum's enhanced Bird Mode is a game-changer. By optimizing the gain and clutter settings specifically for bird detection, it helps you find the tuna and billfish holding under distant flocks with photographic clarity. Designed for a seamless interface with Axiom displays, this pedestal utilizes Beam Sharpening technology to provide an effective horizontal beam width equivalent to a larger array.
Technical Specifications
| Official MPN |
E70487 |
| Peak Power Output |
12kW |
| Maximum Range |
Up to 96 Nautical Miles (Array Dependent) |
| Rotation Speed |
24 / 48 RPM |
| Operating Voltage |
10.8V to 32V DC |
| Waterproofing |
IPX6 Rating |
| Weight (Pedestal) |
Approx. 21.3 kg (47 lbs) |
Magnum Series Professional Features:
- Superior Bird Mode: Specialized signal processing identifies feeding birds at much greater distances than standard radars.
- Beam Sharpening: Provides sub-degree horizontal beam resolution for the sharpest target separation in its class.
- MARPA Target Tracking: Advanced tracking of up to 25 targets simultaneously for unmatched situational awareness.
- Real-Time Updates: Dual-range mode allows you to monitor short and long-range targets at the same time on a single screen.
- Rugged Build: Designed to withstand the vibration and environmental extremes of offshore high-performance vessels.
Frequently Asked Questions
1. Does this include the antenna array?
No, MPN E70487 is the 12kW pedestal only. You will need to pair this with a 4-foot (A80488) or 6-foot (A80489) Magnum Open Array antenna to complete the system.
2. Is this compatible with older Raymarine MFDs?
The Magnum pedestal is optimized for LightHouse 3 and LightHouse 4 displays, specifically the Axiom, Axiom Pro, and Axiom XL series. Some legacy eS and gS Series units may support it with a software update.
Marine Electronics Specialist | Verified Raymarine Magnum Series Technical Data | MPN: E70487
