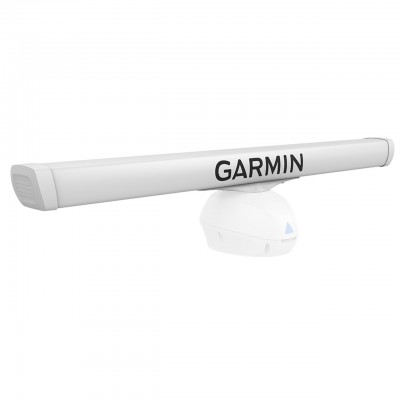

The Garmin GMR Fantom 6' Open Array (Antenna Only) is a high-performance 6-foot replacement or upgrade antenna designed specifically for use with Garmin Fantom series pedestals. Featuring a narrow 1.25-degree horizontal beamwidth, this array provides exceptional target separation and high-resolution imaging. It is the ultimate choice for serious offshore anglers and professional mariners who require maximum range and the ability to detect small targets or bird flocks at great distances.
Technical Specifications
| Brand / Manufacturer |
Garmin Ltd. |
| Model / MPN |
GMR Fantom 6' Antenna (010-01366-00) |
| Antenna Length |
6 Feet (72 inches) |
| Horizontal Beamwidth |
1.25° (Ultra-High Resolution) |
| Vertical Beamwidth |
23° (11.5° above / 11.5° below) |
| Compatibility |
GMR Fantom 56, 126, and 256 Pedestals |
| Weather Rating |
IPX6 Water Rating |
What's Included?
- 6-Foot Open Array Antenna Unit
- Mounting Hardware and Gasket
- Installation Documentation
- *Note: Radar Pedestal (Gearbox), Power Cable, and Network Cable are NOT included
Superior Range and Precision
The GMR Fantom 6' antenna array allows your radar system to utilize MotionScope™ technology to its fullest potential, highlighting moving targets in different colors to help avoid collisions and find birds. With its massive 6-foot span, it delivers a tighter beam for picking out weak targets at extreme ranges, even in poor weather conditions like fog or rain.
Frequently Asked Questions
1. Is this compatible with xHD2 pedestals?
No, this specific antenna (010-01366-00) is designed for GMR Fantom solid-state pedestals. For xHD2 series, please use the xHD2 specific antenna arrays.
2. Does this include the pedestal/motor?
No. This is the Antenna Array Only. It is intended as a replacement part or as part of a custom build where the pedestal is purchased separately.
