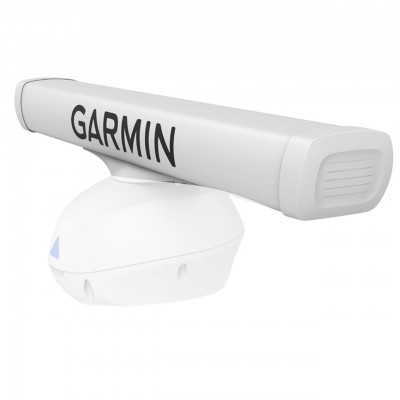

The Garmin GMR Fantom 4' Open Array (Antenna Only) is a high-definition 4-foot radar antenna designed for seamless integration with Garmin Fantom series pedestals. With a 1.8-degree horizontal beamwidth, this array offers an excellent balance between a compact physical footprint and professional-grade target separation. It is specifically engineered to maximize the performance of solid-state pulse compression technology, providing mariners with crisp, clear imagery of weather, shorelines, and other vessels.
Technical Specifications
| Brand / Manufacturer |
Garmin Ltd. |
| Model / MPN |
GMR Fantom 4' Antenna (010-01365-00) |
| Antenna Length |
4 Feet (48 inches) |
| Horizontal Beamwidth |
1.8° |
| Vertical Beamwidth |
23° |
| Compatibility |
GMR Fantom 54, 124, and 254 Pedestals |
| Weather Rating |
IPX6 Water Rating |
What's Included?
- 4-Foot Open Array Antenna Unit
- Mounting Hardware and Gasket
- Installation Instructions
- *Note: Radar Pedestal (Gearbox), Power Cable, and Data Cables are NOT included
Precision Targeting for the Modern Mariner
This 4-foot array is the perfect choice for boats where space on the T-top or radar arch is limited but high performance is non-negotiable. When paired with a Fantom pedestal, it enables features like MotionScope™ and Auto Bird Gain with remarkable clarity. Whether you are replacing a damaged array or upgrading your existing Fantom system, this 4' antenna delivers the reliability and accuracy required for safe navigation in all visibility conditions.
Frequently Asked Questions
1. Is this compatible with GMR xHD2 pedestals?
No. This antenna (010-01365-00) is specifically keyed and designed for GMR Fantom solid-state pedestals. Use the xHD2 specific array for magnetron-based systems.
2. Does this include the internal motor?
No. This is the Antenna Array Only. The pedestal (which contains the motor and electronics) must be purchased separately or already be installed on the vessel.
