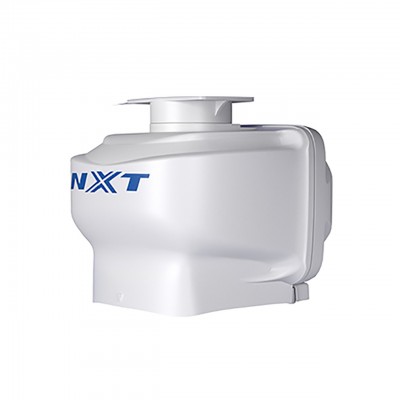

The Furuno DRS12ANXT is a 100-watt Solid-State Pulse Compression Radar that brings commercial-grade performance to a pedestal format. Featuring the revolutionary NXT Doppler technology, this radar removes the need for a traditional magnetron, offering longer life and lower maintenance. With Target Analyzer™, targets that are approaching your vessel automatically change color to help you identify hazards instantly, providing a massive advantage in collision avoidance.
Technical Specifications
| Brand / Manufacturer |
Furuno Electric Co., Ltd. |
| Model / MPN |
DRS12ANXT (NXT Pedestal) |
| SKU |
FUR-DRS12ANXT-NXT-100W |
| Peak Output Power |
100W (Solid-State equivalent to high-watt magnetron) |
| Radar Technology |
Solid-State Pulse Compression (No Magnetron) |
| Special Features |
Target Analyzer™, Fast Target Tracking, Bird Mode |
| Power Supply |
12-24 VDC Compatible |
What's Included?
- DRS12ANXT NXT Radar Pedestal Unit
- Mounting Hardware Kit
- Spare Parts Pack
- Installation Manual & Documentation
- *Note: Open Array Antenna (3.5'/4'/6') and Cable sold separately
Superior Awareness: No Warm-Up, Total Control
Because the DRS12ANXT is Solid-State, it features Instant-On capabilities—no more waiting for the magnetron to warm up. The Rain Mode and RezBoost™ technology ensure targets are shown clearly even through heavy squalls. For offshore fishermen, the enhanced Bird Mode is a game-changer, identifying birds feeding at a distance to lead you directly to the action. It integrates seamlessly with Furuno NavNet TZTouch2 and TZTouch3 displays.
Frequently Asked Questions
1. How does Target Analyzer™ work?
It uses the Doppler effect to color-code targets: Green for stationary or moving away, and Red for targets approaching your boat, making collision risks obvious at a glance.
2. Which antennas can be mounted on this pedestal?
The DRS12ANXT is compatible with XN10A (3.5ft), XN12A (4ft), and XN13A (6ft) antennas. A larger antenna provides a narrower beamwidth and better resolution.
