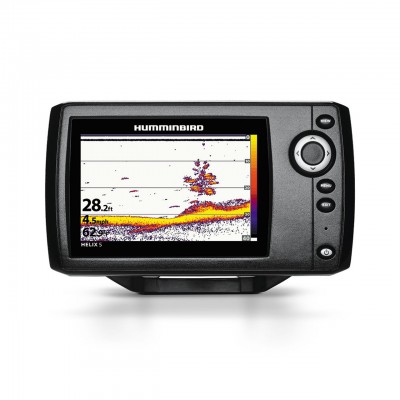

The Humminbird HELIX 5 Sonar G2 (410190-1) features a brilliant 5-inch color display with an intuitive interface. Equipped with DualBeam PLUS sonar and SwitchFire technology, this unit allows you to customize how your sonar returns appear, giving you the power to distinguish between fish, structure, and the bottom with clarity. It is the perfect choice for anglers who prioritize high-quality sonar performance in a compact, standalone unit.
Technical Specifications
| Model / MPN |
410190-1 |
| SKU |
410190-1 |
| Display Size |
5" Diagonal Color TFT |
| Resolution |
800H x 480V Pixels |
| Sonar Standard |
DualBeam PLUS (200/83 kHz) |
| Sonar Coverage |
20° & 60° @ -10dB |
| Max Depth Capability |
1,500 ft |
| Transducer Included |
XNT 9 20 T (Transom Mount) |
| GPS / Mapping |
NOT SUPPORTED |
In the Box
- HELIX 5 Sonar G2 Control Head
- XNT 9 20 T Transom Mount Transducer (With built-in temp sensor)
- Gimbal Mounting Bracket with adjustment knobs
- Power Cable (6 ft length)
- Transducer Mounting Hardware and Bracket
- Owner's Manual and Documentation
Key Engineering Features
- DualBeam PLUS Sonar: Combines two beams for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and the wide beam to search larger areas.
- SwitchFire Sonar: Take command of how your sonar returns appear with two display modes: Clear Mode for less clutter and Max Mode for maximum detail.
- Widescreen Display: Large 16:9 ratio screen provides ample room for split-screen sonar views and easy menu navigation.
- X-Press Menu System: Fast and easy access to the most frequently adjusted settings via a simple keypad interface.
Frequently Asked Questions
Does this model include GPS?
No. The HELIX 5 Sonar G2 (410190-1) is a dedicated fish finder only. It does not have internal GPS or chartplotting capabilities.
