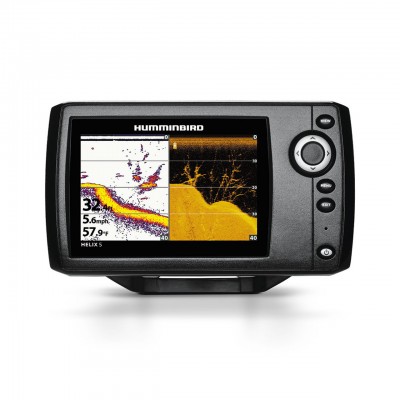

The Humminbird HELIX 5 DI G2 (410200-1) brings professional-grade underwater imaging to a compact and affordable package. Featuring a brilliant 5-inch 16:9 widescreen display, this unit is equipped with Down Imaging to give you a fish-eye view of what’s happening below your boat. Combined with DualBeam PLUS sonar and SwitchFire technology, it allows you to identify structure, brush, and fish with incredible clarity.
Technical Specifications
| Model / MPN |
410200-1 |
| SKU |
410200-1 |
| Display Size |
5" Diagonal Color TFT |
| Resolution |
800H x 480V Pixels |
| Sonar Technology |
Down Imaging & DualBeam PLUS |
| Max Depth Capability |
350 ft (DI) / 600 ft (2D) |
| Transducer Included |
XNT 9 DI T (Transom Mount) |
| GPS / Mapping |
NOT SUPPORTED (Fishfinder Only) |
In the Box
- HELIX 5 DI G2 Control Head
- XNT 9 DI T Transom Mount Transducer (With built-in temp sensor)
- Gimbal Mounting Bracket with adjustment knobs
- Power Cable (6 ft length)
- Transducer Mounting Hardware and Bracket
- Owner's Manual and Installation Guide
Key Engineering Features
- Down Imaging: Get a clear, picture-like view of structure and cover beneath your boat with high-frequency sonar beams.
- DualBeam PLUS Sonar: Two beams combine for great detail and a wide coverage area, helping you identify fish and bottom contours.
- SwitchFire Sonar: Take command of how your sonar returns appear with Clear and Max modes to filter or reveal detail.
- Widescreen Display: 16:9 ratio display allows for excellent split-screen viewing of DI and 2D sonar simultaneously.
Frequently Asked Questions
Does the HELIX 5 DI G2 include GPS?
No. The 410200-1 is a dedicated standalone fishfinder. If you need GPS and chartplotting, you should look for the HELIX 5 CHIRP DI GPS G2 model.
Authorized Humminbird Dealer | MPN: 410200-1 | High-Clarity Marine Sonar
