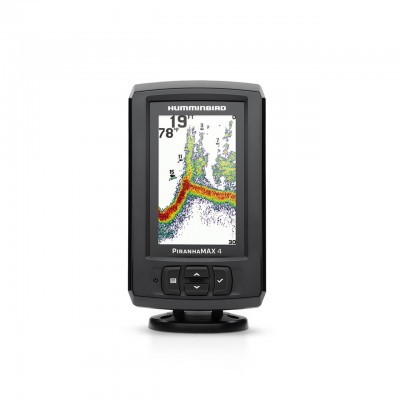

The Humminbird PiranhaMAX 4 (410150-1) features a large 4.3-inch color LCD that provides a clear perspective of what is happening below your boat. With a redesigned and easier-to-use interface, this unit simplifies advanced features like Fish ID+, fish alarms, and depth alarms. It utilizes Dual Beam Sonar technology to offer a balance between detailed returns and wide coverage, making it an ideal choice for both beginner and experienced anglers.
Technical Specifications
| Model / MPN |
410150-1 |
| Display Size / Type |
4.3" Diagonal / 256 Color TFT |
| Resolution (Pixel Matrix) |
272H x 480V |
| Sonar Standard |
Dual Beam (200/455 kHz) |
| Sonar Coverage |
28° & 16° @ -10dB |
| Depth Capacity |
600 ft (200 kHz) / 320 ft (455 kHz) |
| Power Output |
300 Watts (RMS) / 2400 Watts (PTP) |
| Waterproof Rating |
IPX7 |
In the Box
- PiranhaMAX 4 Control Head
- XNT 9 28 T Transducer (Transom Mount)
- Tilt and Swivel Mount
- Power Cable (6 ft)
- Mounting Hardware Kit
- Quick Reference Guide
Key Features
- Dual Beam Sonar: Choose from a narrow or wide beam to see high-detail fish arches and structure or cover a larger area.
- Tilt and Swivel Mount: Quickly adjust your viewing angle for better visibility in any seating position.
- Fish ID+: Automatically identifies fish and displays their depth, making it easier for beginners to interpret sonar data.
- Water Temperature Sensor: Built into the transducer to help you find the thermal layers fish prefer.
- Intuitive Interface: Simple keypad control allows for quick access to zoom, alarms, and sensitivity settings.
Frequently Asked Questions
Does this model support GPS or Mapping?
No, the 410150-1 is a standalone fish finder and does not include GPS or chartplotting capabilities.
Does it include Down Imaging?
No, this is the standard Dual Beam model. For Down Imaging, look for the PiranhaMAX 4 DI (410160-1).
Authorized Humminbird Dealer | MPN: 410150-1 | 1-Year Limited Warranty
