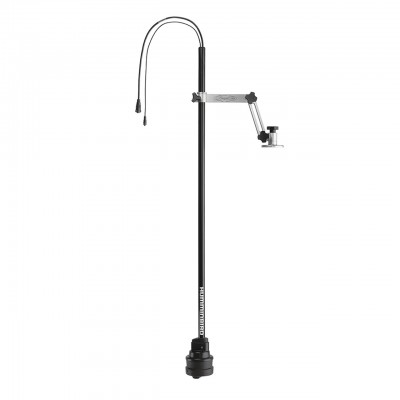

The Humminbird MEGA 360 Imaging (411390-1) provides a 360-degree, detail-rich view around your boat, reaching up to 125 feet in every direction. This specific model features a Universal Bracket, allowing it to be mounted on a variety of surfaces or custom mounts. Powered by MEGA Imaging+, you can identify fish, structure, and bait balls with photographic clarity without ever having to move your boat.
Technical Specifications
| Model / MPN |
411390-1 |
| SKU |
411390-1 |
| Imaging Technology |
MEGA 360 Imaging |
| Coverage Area |
360 Degrees, up to 125 ft in all directions |
| Mounting Type |
Universal Aluminum Bracket |
| Shaft Length |
50 Inches |
| Compatible Series |
HELIX G3N/G4N (MEGA SI+ / MEGA DI+), SOLIX, APEX |
In the Box
- MEGA 360 Imaging Transducer with 50-inch shaft
- Universal Aluminum Mounting Bracket
- 10-foot MEGA 360 Power Cable
- 10-foot SOLIX/APEX Transducer Extension Cable
- HELIX Transducer Adapter Cable (Included)
- Mounting Hardware Kit
Key Engineering Features
- 360° MEGA Imaging Clarity: High-frequency sonar beams rotate to provide a detailed view of everything around your boat.
- Sweep Speed Control: Customize the rotation speed to balance image quality and refresh rate.
- Customizable View: Focus on specific areas (e.g., just the front 90°) to see faster updates.
- Universal Mounting: The geatest flexibility for boats without a compatible trolling motor; mount to the transom or deck.
- Integrated with One-Boat Network: Share 360 data across multiple networked Humminbird units.
See Everything Without Moving
The MEGA 360 Universal (411390-1) is a game-changer for stealthy approaches. Instead of scanning with your trolling motor, the MEGA 360 rotates independently, allowing you to stay on your spot while seeing exactly where the fish are hiding. With the universal bracket, this technology is now accessible for almost any boat configuration.
Frequently Asked Questions
Does this work while the boat is moving?
MEGA 360 is designed for use at slow speeds or while stationary. For high-speed depth tracking, a secondary 2D transducer is recommended.
Authorized Humminbird Dealer | MPN: 411390-1 | MEGA 360 Advanced Imaging
