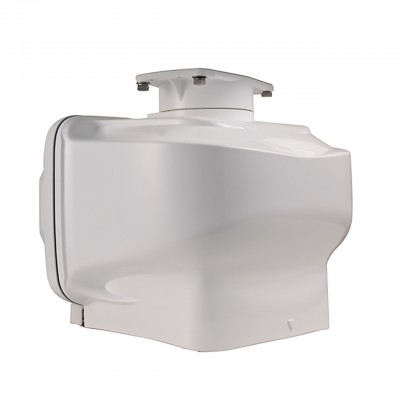

The Furuno DRS12AX is a high-performance 12kW Digital Radar Pedestal belonging to the elite X-Class series. Engineered for both commercial and serious recreational use, this radar redefines target detection with its Ultra High Definition (UHD™) digital processing. It offers unparalleled short-range target separation and impressive long-range detection up to 96 nautical miles, ensuring maximum situational awareness in all weather conditions.
Technical Specifications
| Brand / Manufacturer |
Furuno Electric Co., Ltd. |
| Model / MPN |
DRS12AX (X-Class Pedestal) |
| SKU |
FUR-DRS12AX-UHD-12KW |
| Peak Output Power |
12 kW (High Power) |
| Max Range |
Up to 96 Nautical Miles |
| Rotation Speed |
24/36/48 RPM (Auto-Select) |
| Power Supply |
24 VDC Compatible |
What's Included?
- DRS12AX Pedestal Unit (12kW)
- Installation Materials (Bolts and Hardware)
- Spare Parts Kit
- User Manual & Installation Template
- *Note: Open Array Antenna and Signal Cable sold separately
X-Class: Precision Reimagined
The DRS12AX features a revamped gearbox that is significantly quieter and lighter than previous generations. With Fast Target Tracking™ (TT), it can track up to 30 targets simultaneously, providing instant vector data for collision avoidance. When paired with a NavNet TZTouch series display, the "Bird Mode" becomes available, allowing fishermen to find birds congregated over schools of fish at long distances, a crucial tool for tournament offshore fishing.
Frequently Asked Questions
1. Which Open Array Antennas are compatible?
The DRS12AX can be fitted with 4-foot (XN12A) or 6-foot (XN13A) antennas, depending on your requirement for beamwidth and resolution.
2. Does it require an external PSU (Power Supply Unit)?
The DRS12AX typically requires 24VDC. For some NavNet installations, a PSU-017 power supply may be needed depending on the display model used.
Authorized Furuno Dealer | Professional Marine Radar | Global Shipping Experts
