Technical validation for the VB-2800 platform. This 2025 model is engineered for boats in the 18 to 20-foot range, featuring a heavy-duty single-axle design and hot-dipped galvanized protection for long-term saltwater durability.

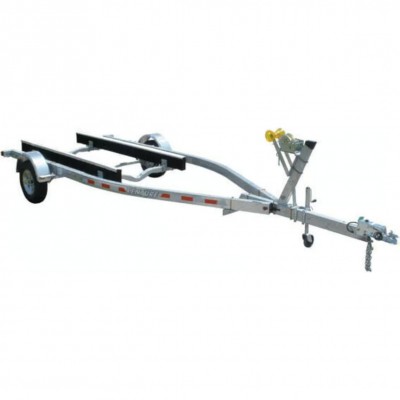

The 2025 Venture VB-2800 is a high-specification single-axle bunk trailer designed for mid-sized powerboats. Utilizing a hot-dipped galvanized steel frame, it provides a superior barrier against corrosion compared to standard painted trailers. With a robust 2,800 lbs load capacity, this model is an ideal match for 18-20 foot center consoles, dual consoles, and skiffs. Standard features for the 2025 model year include submersible LED lighting, heavy-duty carpeted bunks for maximum hull protection, and Super Lube spindles for simplified hub maintenance.
Technical Specifications
| Model Number |
VB-2800 (2025) |
| Load Capacity |
2,800 lbs |
| Gross Vehicle Weight (GVWR) |
3,470 lbs |
| Overall Length |
22' 4" |
| Overall Width |
96" (8' 0") |
| Width Between Fenders |
80" (6' 8") |
| Tire Size |
ST205/75R 14 LRC |
| Coupler Size |
2" Ball |
Standard Features
- Hot-Dipped Galvanized Frame, Axles, and Hardware
- Adjustable Carpeted Bunk System (Full Hull Support)
- LED Submersible "Plug & Play" Lighting
- Super Lube Spindles for easy hub maintenance
- Galvanized Winch Stand with Winch & Heavy-Duty Strap
- Single-Wheel Tongue Jack
- Tredit Advantage 24/7 Roadside Assistance Program
- NMMA & NATM Certified
Frequently Asked Questions
1. Is this trailer equipped with brakes?
The standard VB-2800 typically does not include brakes; however, because its GVWR is over 3,000 lbs, many states require them. We recommend the VB-2800 Surge Disc Brake configuration for enhanced safety.
2. What is the difference between this and the "S" model?
The VB-2800 features a standard frame length for boats up to 20 feet, whereas the VB-2800S has a shorter frame specifically optimized for 17-19 foot vessels.
