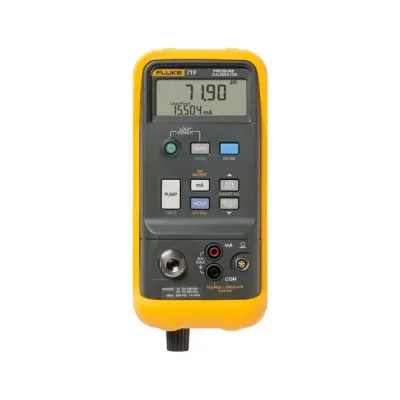

Fluke 719 30G Electric Pressure Calibrator, -12 to 36 psi
Fluke 719 30G Electric Pressure Calibrator, -12 to 36 psi
| Brand: | Fluke |
| Product Code: | 719 30G |
| Availability: | In Stock |
-
$3,752.27
- $4,575.95
Fluke 719 30G Electric Pressure Calibrator, -12 to 36 psi - 719-30G
Description
The Fluke 719 30G Electric Pressure Calibrator is designed to revolutionize the way you calibrate pressure. Featuring an integrated electric pump, this tool allows for effortless, one-handed pressure generation, eliminating the physical strain of manual hand pumping. With a versatile range of -12 to 36 psi (-0.8 to 2.4 bar), it is the perfect solution for high-precision calibration of transmitters, switches, and gauges in low-pressure environments.
Built for the professional technician, the 719 30G offers exceptional pressure measurement accuracy of 0.025%. It simultaneously measures mA while providing 24V loop power, making it a complete calibration station in a handheld form factor. The programmable pump limit settings protect your equipment from over-pressurization, while the compact design ensures ease of use in tight field conditions.
Technical Specifications
| Pressure Range | -12 psi to 36 psi (-0.8 bar to 2.4 bar) |
| Pump Type | Internal Electric Pump (Automatic) |
| Pressure Accuracy | 0.025% of Full Scale |
| mA Measurement | 0 mA to 24 mA (0.015% Accuracy) |
| Loop Power Supply | 24V DC |
| Pressure Resolution | 0.001 psi / 0.1 mbar |
| Maximum Overpressure | 60 psi |
| Media Compatibility | Non-corrosive Gases only |
| Pressure Connection | 1/8" NPT Female |
| Dimensions | 8.2" x 3.4" x 2.1" (210 x 87 x 53 mm) |
| Weight | 2.1 lbs / 0.95 kg |
| Warranty | Three Years (Manufacturer) |
Features
- Electric Pump Generation: Automatic pressure generation saves time and reduces physical fatigue.
- True One-Handed Operation: Compact size allows for easy handling while multi-tasking in the field.
- Programmable Safety Limits: Set custom pump limits to prevent accidental damage to sensors.
- Precision Fine-Tuning: Integrated mechanical vernier for exact pressure adjustment.
- Advanced Switch Testing: Built-in function to capture set and reset values for pressure switches.
- Robust Construction: Protective holster and rugged design for harsh industrial use.
- Professional Compliance: Ships with NIST-traceable calibration for high-standard quality control.
Included in Package
- Fluke 719 30G Electric Pressure Calibrator
- Protective Yellow Holster
- TL75 Test Leads & AC175 Alligator Clips
- NIST-Traceable Calibration Certificate
- Push-to-connect pressure fitting
- Two (2) 9V Alkaline Batteries
- User Manual & Carrying Case
