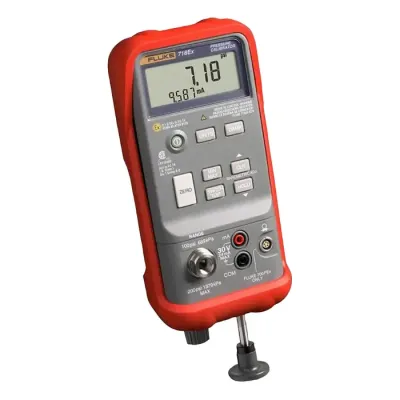

Fluke 718EX 100 Intrinsically Safe Pressure Calibrator, -12 to 100 psi
Fluke 718EX 100 Intrinsically Safe Pressure Calibrator, -12 to 100 psi
| Brand: | Fluke |
| Product Code: | 718EX 100 |
| Availability: | In Stock |
-
$4,091.75
- $4,989.95
Fluke 718Ex 100 Intrinsically Safe Pressure Calibrator, -12 to 100 psi - 718EX-100
Description
The Fluke 718Ex 100 is a specialized Intrinsically Safe pressure calibrator designed for high-precision calibration in explosive gas environments. ATEX and IECEx certified, this rugged handheld tool allows technicians to work safely in refineries, chemical plants, and oil platforms without compromising accuracy. It features an integrated pressure/vacuum hand pump, providing a self-contained solution for field testing up to 100 psi (7 bar).
Engineered for reliability, the 718Ex 100 offers a superior 0.025% accuracy. Its unique pump design is protected by clean-out ports, allowing for easy maintenance in the field if the pump is accidentally exposed to process fluids. The combination of simultaneous pressure and current (mA) measurement makes it the industry standard for troubleshooting and calibrating critical process instruments in hazardous zones.
Technical Specifications
| Safety Certification | ATEX II 1G Ex ia IIC T4 compliant |
| Pressure Range | -12 psi to 100 psi (-850 mbar to 7 bar) |
| Pressure Resolution | 0.01 psi / 1 mbar |
| Pressure Accuracy | 0.025% of Full Scale |
| mA Measurement | 0 mA to 24 mA (0.02% Accuracy) |
| mA Resolution | 0.001 mA |
| Loop Power | Not available (IS Safety Restriction) |
| Media Compatibility | Non-corrosive Gases only |
| Pressure Connection | 1/8" NPT Female |
| Operating Temperature | -10°C to 50°C |
| Weight | 2.1 lbs / 0.95 kg |
| Warranty | Three Years (Manufacturer) |
Features
- Intrinsically Safe (Ex): Fully certified for use in Zone 0, 1, and 2 hazardous areas.
- Integrated Hand Pump: High-quality manual pump with fine-adjustment vernier for exact pressure control.
- Dual-Display UI: Simultaneously monitors pressure and mA for efficient transmitter testing.
- Easy-Clean Pump: Patented clean-out ports prevent permanent damage from accidental liquid intake.
- Peak Capture: Min/Max and Hold functions for logging pressure fluctuations.
- Ex-Rated Protection: Encased in a rugged red protective holster for extreme durability.
- Standard Compliance: Delivered with a NIST-traceable calibration certificate.
Included in Package
- Fluke 718Ex 100 Pressure Calibrator
- Protective Red Holster (Ex-Certified)
- TL75 Test Leads & AC175 Alligator Clips
- NIST-Traceable Calibration Certificate
- 9V Alkaline Battery (Approved IS type)
- User Manual & Safety Data Sheet
