Fluke 154 HART Communications and Diagnostics Assistant
Complete Tablet-Based Solution | Wireless Bluetooth® HART Modem | Full DD Library Support
Detailed Description

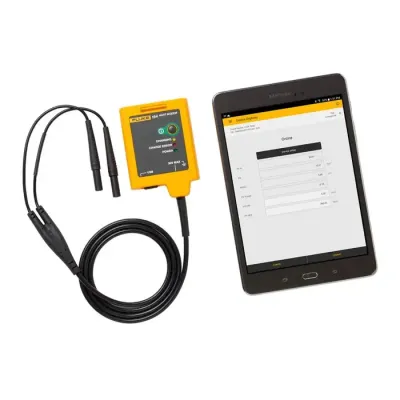

The Fluke 154 is a standalone, tablet-based HART® communication tool that combines a rugged Android™ tablet with a long-range Bluetooth modem. This system allows technicians to configure, test, and troubleshoot HART smart devices wirelessly, keeping them at a safe distance from rotating machinery or hazardous environments. Unlike traditional handheld communicators, the Fluke 154 provides a high-resolution interface and free, easy-to-install updates to the Device Description (DD) library via Wi-Fi.
Full Technical Specifications
| HART Revision Support | HART 5, 6, and 7 |
| Device Descriptions (DD) | Complete Library (Universal, Common Practice, Device Specific) |
| Tablet Operating System | Android™ 5.0 or newer |
| Bluetooth Range (Class 1) | Up to 30 meters (100 feet) line-of-sight |
| Bluetooth Protocol | Bluetooth v2.0 |
| Modem Battery Chemistry | Rechargeable Lithium-ion |
| Modem Battery Life | 19 hours continuous use (approx. 250 hours standby) |
| Charging Connection | Micro-USB (Modem and Tablet) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 0% to 90% (non-condensing) |
| Modem Dimensions | 2.75" x 2.0" x 0.8" (70 x 51 x 20 mm) |
| Modem Weight | 0.5 lbs (0.22 kg) |
| Radio Certifications | FCC, IC, CE, C-Tick |
Advanced Diagnostic Capabilities
- Full Configuration: Edit PV, SV, TV, QV, and all device parameters.
- Loop Testing: Perform full analog loop tests and verify signal accuracy.
- Trim Calibration: Perform Zero and Span trims on smart transmitters.
- Device Health: Run self-tests and view diagnostic status messages in real-time.
- Data Capturing: Save device configurations to the internal 32GB memory for future reference or reporting.
- Resistor Integration: Includes an external 250 Ω resistor for loops without existing termination.
Tablet Hardware Features
- High-resolution multi-touch capacitive display.
- Integrated Wi-Fi for direct downloading of free DD updates.
- High-capacity battery for full-day field operation.
- Rugged protective bumper case with integrated stand.
- Pre-installed Fluke HART Mobile Application.
Complete Kit Contents
- Android™ Tablet (HART Configured)
- Wireless Class 1 Bluetooth® HART Modem
- HART Mini-grabber Test Lead Set (High-Flex)
- Rugged Tablet Bumper Case & Screen Protector
- HART Loop Resistor (250 Ω)
- USB to Micro-USB Charging Cables & Wall Charger
- Padded Carrying Case with Shoulder Strap
- Manual and Quick Start Guide
