⚓ Marine Engineering Specialist: Verified Ultrex Hybrid Technical Data.
Model 1368891 is the definitive cable-steer hybrid, combining mechanical feel with electronic Power Steering and integrated Dual Spectrum CHIRP (DSC) sonar.

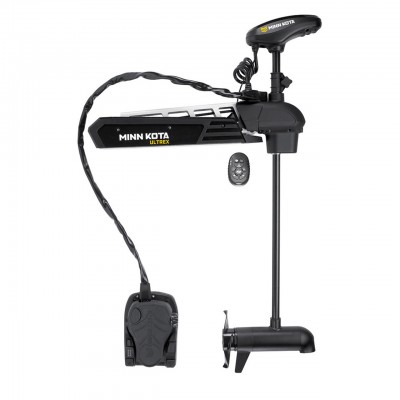

The Minn Kota Ultrex 80 (1368381) is the motor that changed bass fishing by combining the responsiveness of a traditional cable-steer motor with the precision of Electronic Power Steering. This 52-inch model features Built-In Dual Spectrum CHIRP Sonar, providing high-definition Humminbird 2D imaging with zero external wiring. Equipped with Advanced GPS, the Ultrex 80 allows for the industry-leading Spot-Lock® with Jog, Drift Mode, and full One-Boat Network® integration, all controllable via the included Micro Remote or the ultra-responsive foot pedal.
Technical Specifications
| Part Number (MPN) |
1368891 |
| Max Thrust Level |
80 lbs |
| System Voltage |
24V DC |
| Shaft Length |
52 Inches (132 cm) |
| Steering Type |
Cable-Steer with Power Steering Assist |
| Integrated Sonar |
Built-In Dual Spectrum CHIRP (DSC) |
| Max Amp Draw |
56 Amps |
| Propeller |
Weedless Wedge 2 (MKP-33) |
In The Box
- 1x Ultrex 80 lb. 52" Motor with Built-In DSC Sonar
- 1x Micro Remote with Lanyard
- 1x Ultrex Foot Pedal (Integrated Power Steering)
- 1x Heading Sensor (Bluetooth)
- 1x MKP-33 Prop & Mounting Hardware
- 1x Ethernet Extension Cable (30') & Adapter Cables
Frequently Asked Questions
1. What is the difference between "Micro Remote" and the standard remote?
The Micro Remote is a simplified, compact controller that provides quick access to Spot-Lock, steering, speed, and AutoPilot. It does not have an LCD screen like the larger Advanced GPS remote but is much lighter for wearing around the neck.
2. How does Power Steering assist in bass fishing?
Unlike traditional cable-steer motors that can push back against your foot in high thrust, Ultrex Power Steering neutralizes foot pedal torque, allowing for all-day precision steering with zero foot fatigue.
