Model 1358210 is the compact 45-inch brushless variant, engineered for maximum torque and thermal efficiency in shallower water or low-profile boat applications.

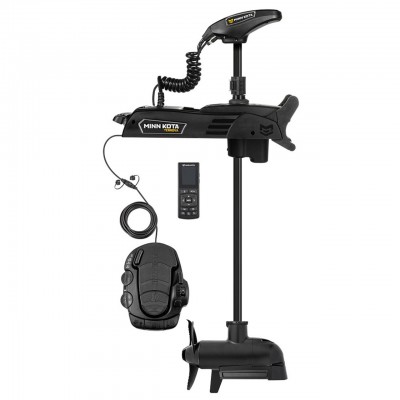

The Minn Kota Terrova QUEST 90/115 (1358210) introduces professional-grade brushless technology to a versatile 45-inch shaft platform. Designed for the One-Boat Network®, this motor provides 24V or 36V operation, delivering up to 115 lbs of thrust with zero brush friction. It features a reinforced Carbon Fiber Shaft and an integrated MEGA Side Imaging & Down Imaging transducer, ensuring high-resolution sonar data is delivered without exposed wiring. The Advanced GPS suite provides ultimate boat control, including Spot-Lock®, Drift Mode, and real-time battery monitoring through the QUEST-exclusive power management system.
Technical Specifications
| Part Number (MPN) |
1358210 |
| Max Thrust Level |
90 lbs (24V) / 115 lbs (36V) |
| System Voltage |
24V or 36V DC (Automatic Selection) |
| Shaft Length / Material |
45" / Carbon Fiber Reinforced Composite |
| Motor Technology |
Brushless / High-Torque / Long-Life |
| Sonar Capabilities |
MEGA Side Imaging (MSI) & MEGA Down Imaging (MDI) |
| Max Amp Draw |
58 Amps (Full Load) |
| Propeller |
Power Prop (MKP-40) |
In The Box
- 1x Terrova QUEST 90/115 lb. 45" Motor (Built-In MSI/MDI)
- 1x Advanced GPS Wireless Remote & Lanyard
- 1x Electric Foot Pedal (Heel-Toe Electric Steer)
- 1x MKP-40 Power Prop & Mounting Hardware
- 1x 30' Ethernet Extension Cable & Humminbird Adapter Bundle
Frequently Asked Questions
1. Can the 45-inch QUEST model handle heavy vegetation?
Yes. The QUEST series brushless motor provides up to 50% more torque than traditional motors. When paired with the MKP-40 Power Prop, it is specifically designed to slice through thick weeds and matting without bogging down.
2. Does this motor support real-time battery telemetry?
Yes. When networked with a Humminbird fish finder, the QUEST series provides real-time "Time Until Empty" and battery percentage data, allowing for advanced power management during long tournament days.
