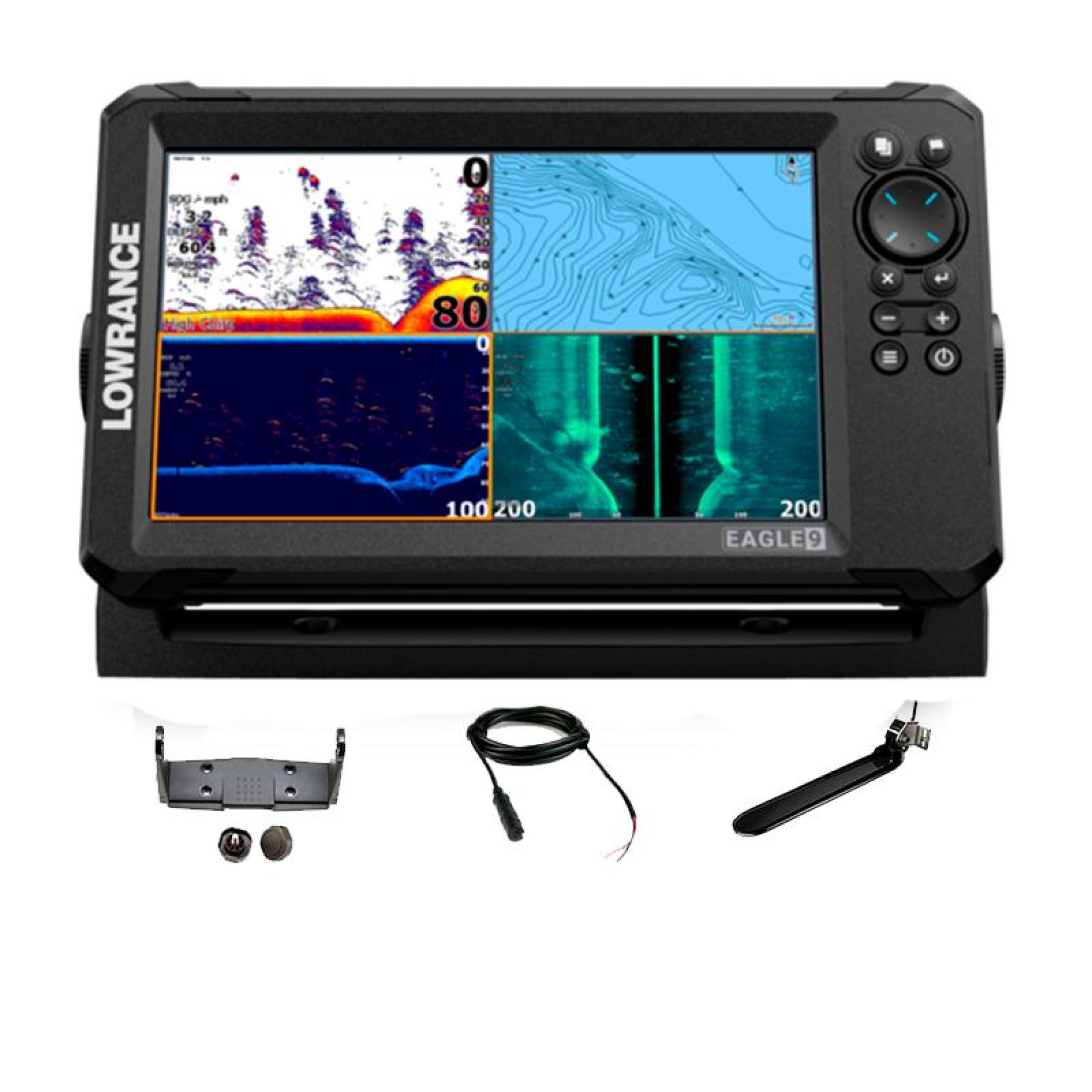

Lowrance Eagle 9 is a 9-inch fish finder/chartplotter with a newly designed TripleShot HD Transducer, combining wide-angle CHIRP sonar, SideScan and DownScan Imaging. It features FishReveal technology, sonar autotuning, a bright IPS display and a worldwide basemap, with support for C-MAP DISCOVER upgrades.

Specifications

• Brand: Lowrance
• Model: Eagle 9
• Type: Fish Finder / Chartplotter
• Display Size: 9"
• Display Resolution: 1024 × 600
• Screen Brightness: 1,000 nits
• Display: IPS
• Transducer: TripleShot HD
• Sonar: High CHIRP
• SideScan: Yes
• DownScan Imaging: Yes
• FishReveal: Yes
• Autotuning: Yes
• GPS: Built-in
• Cartography: Worldwide Basemap
• Chart Upgrade: C-MAP DISCOVER supported
• microSD: 1 slot, up to 32 GB
• Waypoints: Up to 3,000
• Routes: Up to 100
• Trails: Up to 100
• Waterproof Rating: IPX7
• Supply Voltage: 12V DC
• Mounting: Gimbal bracket or dash mount
• Weight: 0.9 kg / 1.98 lb
• Product Code: 000-16126-001

Key Features

• 9" IPS display
• TripleShot HD Transducer
• Wide-angle CHIRP sonar
• SideScan Imaging
• DownScan Imaging
• FishReveal
• Automatic sonar tuning
• Worldwide Basemap
• C-MAP DISCOVER upgrade option
• Genesis Live mapping support
• microSD card slot
• Twist-lock transducer connector
• Suitable for boat or kayak installation
