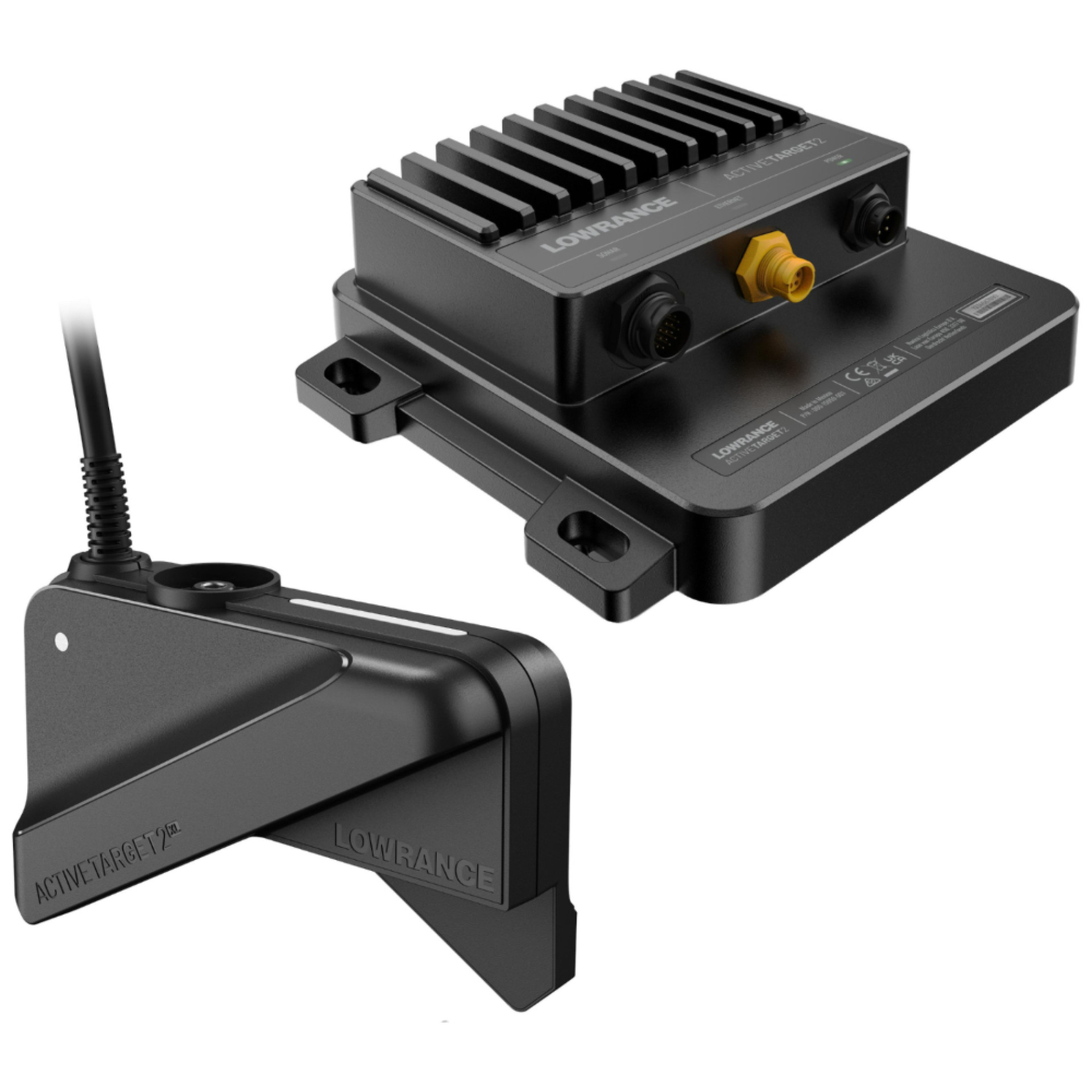

Lowrance ActiveTarget 2 XL is an advanced live sonar transducer that provides an expansive 180° surface-to-surface live view across Forward, Down and Scout modes. It delivers high-resolution views of fish, structure and lure activity, while allowing anglers to switch between Forward XL and Down XL views directly from the compatible display.

ActiveTarget 2 XL can also be used as an upgrade with an existing ActiveTarget 2 sonar module, so users do not necessarily need to purchase another module.

Specifications

• Brand: Lowrance
• Model: ActiveTarget 2 XL
• Type: Live Sonar Transducer
• Product Code: 000-16489-001
• Cable Length: 25 ft / 7.6 m
• Live View: 180°
• Modes: Forward XL, Down XL, Scout XL
• Mounting: Shaft mount / bracket mount
• Ethernet: Yes
• Power Consumption: 2.2A max @ 10.8VDC
• Typical Power: 1.5A @ 13.8VDC
• Supply Voltage: 10.8–31.2 VDC
• Recommended Fuse: 5A
• Waterproof Rating: IP67
• Dimensions: 7.08" × 4.47" × 2.68"
• Weight: 3.55 lb
• Compatible Displays: HDS PRO, HDS LIVE, HDS Carbon, Elite FS
• Compatible Module: ActiveTarget 2 sonar module
• Warranty: 2 years + 3 years in-service repairs/upgrades.

Key Features

• 180° surface-to-surface live sonar
• Forward XL, Down XL and Scout XL views
• High-resolution fish and structure imaging
• Improved image stabilization
• Improved detail at greater distances
• Instant Forward/Down switching
• Scout mode for wide overhead coverage
• Single-transducer installation
• Compatible with existing ActiveTarget 2 module
• Shaft mounting
• Compatible with HDS PRO, HDS LIVE, HDS Carbon and Elite FS
• Supports Scout Live 360° when two XL systems are paired with HDS PRO.

What's Included

• Lowrance ActiveTarget 2 XL Transducer
• 25-ft / 7.6 m cable
• Shaft mount bracket.
