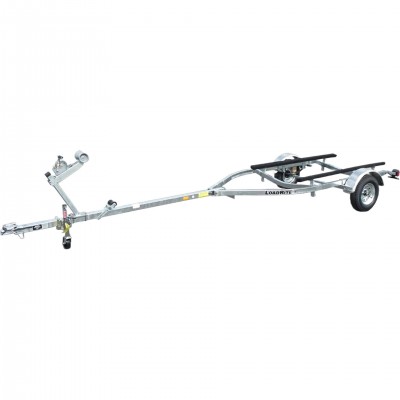

Load Rite Elite 16F1200WT Bunk Trailer
2025 ELITE SERIES | 1,200 LB CAPACITY | HOT-DIPPED GALVANIZED | 16' BOATS
The Load Rite Elite 16F1200WT (2025 Model) is a premium single-axle trailer designed to provide maximum protection for boats up to 16 feet. Built with a heavy-duty hot-dipped galvanized steel frame, this trailer is engineered for long-term durability in both freshwater and harsh saltwater environments. The Elite Series features upgraded Torsion Axle suspension for a smoother ride and independent wheel movement, ensuring your vessel is transported with the highest level of safety.
Technical Specifications
| Model / MPN |
16F1200WT (2025 Edition) |
| Load Capacity |
1,200 lbs (544 kg) |
| Gross Vehicle Weight (GVWR) |
1,550 lbs |
| Boat Length Range |
14 ft to 16 ft |
| Overall Width / Length |
60" Wide / 17' 8" Overall Length |
| Axle Type |
Single Torsion Axle (Maintenance-Free) |
| Tire Size |
4.80 x 12 C (Galvanized Rims) |
| Coupler Size |
2" Ball |
In the Box / Included Features
- Complete 16F1200WT Galvanized Frame (Elite Series)
- Pressure-Treated Carpeted Bunks with fully adjustable galvanized supports
- Premium Manual Winch with heavy-duty strap and safety hook
- Swivel-Up Tongue Jack with wheel for easy manual maneuvering
- Waterproof Submersible LED Lighting (Complete wiring kit)
- Safety Cables with spring-loaded locking hooks
- EZ-Lube Hubs for simplified bearing maintenance
Key Engineering Features
- Hot-Dipped Galvanization: The entire frame is submerged in molten zinc to ensure rust protection inside and out.
- Torsion Axle Suspension: Provides independent wheel dampening and a lower center of gravity compared to leaf springs.
- Elite Fastener Kit: Uses galvanized or stainless steel hardware to prevent corrosion streaks.
- Balanced Wheel Assembly: 12-inch wheels are pre-balanced to reduce vibration during highway towing.
- Adjustable Winch Post: Can be moved along the tongue to optimize tongue weight for different boat hulls.
Frequently Asked Questions
Does the 2025 model include LED lights?
Yes. All Elite Series trailers come standard with a fully submersible LED lighting system, which is more durable and brighter than traditional incandescent bulbs.
Authorized Load Rite Dealer | MPN: 16F1200WT | 2-Year Limited Frame Warranty | NMMA Certified
