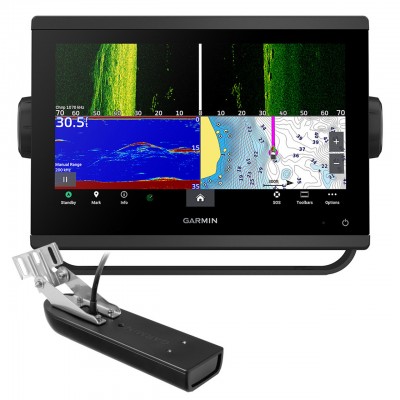

The Garmin GPSMAP 943xsv is a premium 9-inch multi-function display (MFD) that offers a significantly higher resolution IPS display for improved sunlight readability and wide-angle clarity. This professional-grade bundle includes the GT23-TM transducer, which delivers exceptional CHIRP traditional sonar and ClearVü™ scanning sonar. Preloaded with Garmin Navionics+™ coastal and inland mapping, the 943xsv provides the speed, detail, and integration needed for serious coastal and offshore fishing.
Technical Specifications
| Brand / Manufacturer |
Garmin Ltd. |
| Model / MPN |
GPSMAP 943xsv (010-02366-61) |
| Display Size / Type |
9" WXGA IPS Touchscreen (1280 x 720 pixels) |
| Included Transducer |
GT23-TM (CHIRP Traditional & ClearVü) |
| Cartography |
Garmin Navionics+™ (Built-in) |
| Power Output (Sonar) |
600W (Traditional) / 500W (ClearVü) |
| Connectivity |
NMEA 2000®, Wi-Fi®, Garmin Marine Network, J1939 |
What's Included?
- GPSMAP 943xsv Multi-Function Display
- GT23-TM Transducer (Transom Mount)
- Garmin Navionics+™ preloaded charts
- Power Cable and NMEA 2000® T-connector
- Bail Mount Kit with knobs & Flush Mount Kit
- Protective Cover and Documentation
Ultra-Clear Sonar & Fast Processing
Command the water with a high-resolution IPS display that provides 50% more pixels than previous generations. The GPSMAP 943xsv combined with the GT23-TM transducer is the perfect setup for offshore anglers, offering clear target separation at depth and crisp scanning of structure. With its enhanced processing power and full network compatibility, you can easily add **Panoptix LiveScope™**, GMR™ radars, and autopilots to create a fully integrated helm.
Frequently Asked Questions
1. Is this unit compatible with LiveScope?
Yes. The GPSMAP 943xsv is fully compatible with the Panoptix LiveScope™ system via the Garmin Marine Network port.
2. What is the benefit of the GT23-TM transducer?
The GT23-TM is optimized for offshore use, providing deep-water CHIRP sonar performance and high-frequency ClearVü scanning for detailed bottom structure imaging.
