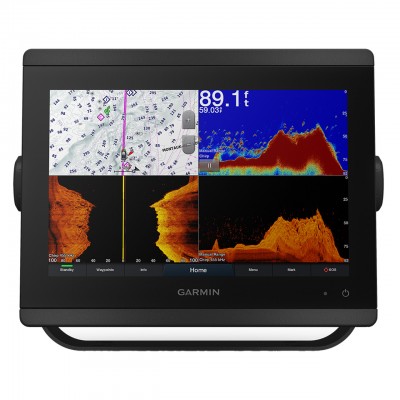

The Garmin GPSMAP 8410xsv is a high-performance 10-inch multi-function display (MFD) engineered for captains who require professional-grade navigation and sonar capabilities in a compact footprint. Featuring a brilliant Full HD IPS touchscreen, it provides exceptional clarity and wide viewing angles even in bright sunlight. The "xsv" series includes a built-in 1kW dual-channel CHIRP sonar, offering superior target separation and deep-water performance. Preloaded with a Worldwide Basemap, it serves as a sophisticated hub for a fully integrated marine network.
Technical Specifications
| Brand / Manufacturer |
Garmin Ltd. |
| Model / MPN |
GPSMAP 8410xsv (010-02091-02) |
| Display Size / Type |
10" Full HD IPS Touchscreen (1920 x 1080 pixels) |
| Internal Sonar |
1kW Dual-Channel CHIRP, ClearVü, SideVü |
| Cartography |
Worldwide Basemap (Supports Garmin Navionics+) |
| Processor |
Premium High-Speed Processor |
| Connectivity |
NMEA 2000®, NMEA 0183, J1939, Wi-Fi®, ANT® |
What's Included?
- GPSMAP 8410xsv Multi-Function Display
- Power Cable and NMEA 2000® T-connector
- Bail Mount Kit with knobs
- Flush Mount Kit with gasket
- Protective Cover and Trim Bezel
- *Note: Transducer and detailed charts sold separately
Premium Integration & Live Sonar Ready
The GPSMAP 8410xsv offers complete control of your vessel’s systems. This MFD fully supports the Panoptix LiveScope™ system and the entire line of Garmin GMR™ radars. Its edge-to-edge glass design allows for a sleek, modern look, and with its high-speed processor, you get the fastest map drawing and sonar refreshes in its class. Built-in support for engine data (J1939), digital switching, and autopilot makes it the most versatile 10-inch display on the market.
Frequently Asked Questions
1. Can I use this with polarized sunglasses?
Yes. The high-quality IPS display ensures full visibility from any angle, even when wearing polarized sunglasses.
2. Does it support Ultra High-Definition sonar?
Yes. When paired with a compatible transducer, the built-in sonar supports UHD SideVü and ClearVü for photo-like images of fish and structure.
