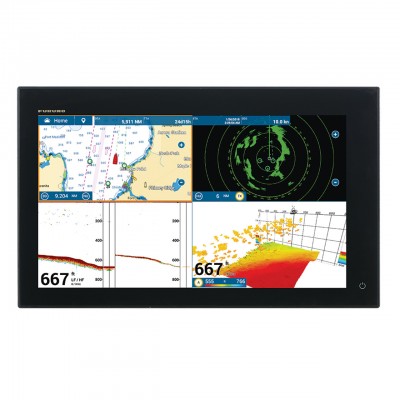

Furuno NavNet TZtouch3 19" MFD with 1kW Dual Channel CHIRP Sounder - TZT19F
Furuno NavNet TZtouch3 19" MFD with 1kW Dual Channel CHIRP Sounder - TZT19F
| Brand: | Furuno |
| Product Code: | TZT19F |
| Availability: | In Stock |
-
$4,280.40
Furuno NavNet TZtouch3 19" MFD - TZT19F
19" Full HD IPS Display | Built-in 1kW Dual Channel CHIRP | Quad-Core Power
Description
The Furuno TZT19F is the flagship of the NavNet TZtouch3 series, featuring a massive 19-inch Full HD all-glass multi-touch display. This professional-grade MFD is powered by a high-speed quad-core processor, ensuring instantaneous chart redraws and seamless operation of radar, sonar, and instrument data. Its defining internal feature is the built-in 1kW Dual Channel TruEcho CHIRP™ sounder, capable of running low, medium, and high frequency ranges simultaneously for elite target separation at extreme depths. Designed for the bridge of serious offshore yachts and commercial vessels, the TZT19F offers unmatched situational awareness and system expandability.
Complete Technical Specifications
| Brand / Manufacturer | Furuno Electric Co., Ltd. |
| Model Number (MPN) | TZT19F |
| Display Size | 18.5" (470 mm) Diagonal |
| Display Type | Full HD (1920 x 1080) Color IPS LCD |
| Brightness | 900 cd/m² (Typical) |
| Internal Sonar | 1kW Dual Channel TruEcho CHIRP™ / CW |
| Processor | Quad-Core Central Processing Unit |
| Waypoints / Routes | 30,000 Points / 200 Routes |
| Interface | NMEA 2000 (1 Port), LAN (3 Ports), USB (2 Ports) |
| Supply Voltage | 12-24 VDC (4.3 - 2.2 A) |
| Waterproofing | IP56 (Front) |
| Weight | 17.2 lbs / 7.8 kg |
| Dimensions | 498 x 293 x 123 mm |
Advanced Performance Features
- TruEcho CHIRP™: Integrated 1kW Dual Channel sonar for elite target separation and deep-sea penetration.
- PIN Code Security: New PIN Code Lock feature allows you to protect your MFD data with a secure password.
- TZ Cloud Ecosystem: Sync waypoints, routes, and personal settings across TZtouch3 and mobile devices.
- Deep Sea Capability: Connect optional 2kW or 3kW transducers via the DI-FFAMP for extreme deep-water fishing.
- Full Glass Multi-Touch: Edge-to-edge sleek design, perfect for flush-mounting into a modern glass bridge.
- Quad-Core Power: Lightning-fast response and data handling for high-resolution radar and 3D charts.
Included in Package
- TZT19F 19" Multi-Function Display (MPN: TZT19F)
- Protective Silicone Sun Cover
- Power Cable Assembly
- Installation Materials & Spare Parts
- Professional Technical Inspection Certificate
- User Manual & Installation Guide
