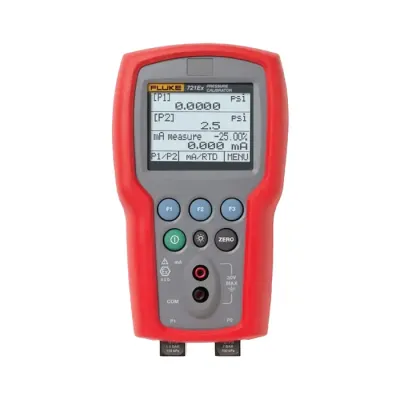

Fluke 721EX-1615 Intrinsically Safe Dual Sensor Precision Pressure Calibrator, 16/1500 psi
Fluke 721EX-1615 Intrinsically Safe Dual Sensor Precision Pressure Calibrator, 16/1500 psi
| Brand: | Fluke |
| Product Code: | 721EX-1615 |
| Availability: | In Stock |
-
$3,018.52
- $3,681.13
Fluke 721EX-1615 Intrinsically Safe Dual Sensor Pressure Calibrator
The Fluke 721EX-1615 is an intrinsically safe dual-sensor pressure calibrator designed for the most demanding custody transfer and gas flow measurement applications. Certified for ATEX/IECEx Zone 1, it enables technicians to measure both static and differential pressure simultaneously with an industry-leading 0.025% accuracy.
| Full Technical Specifications | |
|---|---|
| Model Number | Fluke 721EX-1615 (Part No. 4410555) |
| Low Pressure Sensor (P1) | -14 psi to +16 psi (-0.97 bar to 1.1 bar) |
| High Pressure Sensor (P2) | 0 psi to +1500 psi (0 bar to 103.4 bar) |
| Pressure Accuracy | ±0.025% of full scale |
| mA Measurement | 0 to 24 mA (Accuracy 0.015%) |
| Safety Rating | ATEX/IECEx Ex ia IIB T3 Gb (Zone 1) |
| Shipping Weight | Approx. 5.0 lbs (2.3 kg) with full kit |
| Unit Weight | 0.3539 kg (1 lb 3 oz) |
| Warranty | 3-year standard warranty |
Standard Accessories Included:
- Soft Carrying Case
- Four (4) AA Alkaline Batteries
- TL75 Test Lead Set
- AC72 Alligator Clips
- NIST-Traceable Calibration Certificate
- User Manual
Frequently Asked Questions (FAQ)
The 1615 model provides the perfect sensor combination for calibrating flow computers. Use the 16 psi sensor for differential pressure and the 1500 psi sensor for static pressure measurement, both with high-precision accuracy.
Yes. The "EX" designation confirms it is intrinsically safe and ATEX/IECEx certified, making it suitable for use in potentially explosive environments where standard electronics are prohibited.
The total shipping weight is approximately 5.0 lbs (2.3 kg). This includes the 1.2 lb unit, the soft carrying case, batteries, test leads, and documentation.
Yes. By adding the optional Fluke 720RTD probe, you can measure temperature with 0.1°C accuracy, providing a complete gas custody transfer testing solution.
