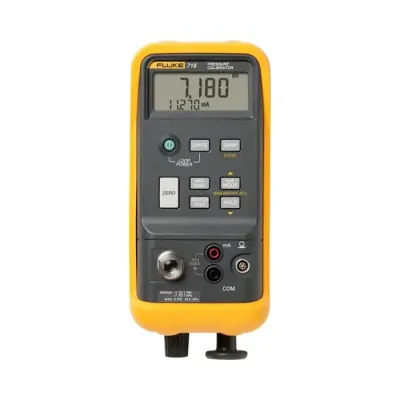

Fluke 718 100US Pressure Calibrator, -12 to 100 psi
Fluke 718 100US Pressure Calibrator, -12 to 100 psi
| Brand: | Fluke |
| Product Code: | 718 100US |
| Availability: | In Stock |
-
$2,929.35
- $3,569.95
Fluke 718 100US Pressure Calibrator
The Fluke 718 100US is a complete pressure calibration solution for process technicians. It features a built-in pressure/vacuum hand pump with a fine-adjust vernier and bleed valve, providing everything you need to calibrate and test pressure devices in one compact tool. With a 100 psi range and 0.025% accuracy, it is the industry standard for field calibration.
| Full Technical Specifications | |
|---|---|
| Model Number | Fluke 718 100US (Part No. 665082) |
| Pressure Range | -12 psi to 100 psi (-850 mbar to 7 bar) |
| Pressure Accuracy | 0.025% of range |
| mA Measure/Source | 0 to 24 mA (0.015% accuracy) |
| Loop Power | 24V DC loop power supply |
| Shipping Weight | Approx. 5.0 lbs (2.3 kg) with holster and accessories |
| Unit Weight | Approx. 2.2 lbs (1 kg) with holster |
| Max. Pressure | 200 psi (over-pressure protection) |
| Warranty | 3-year standard warranty (1-year for pump) |
Standard Accessories Included:
- Protective Yellow Holster
- TL75 Test Leads Set
- AC72 Alligator Clips
- 9V Alkaline Battery
- NIST-Traceable Calibration Certificate
- User Manual
Frequently Asked Questions (FAQ)
Yes. The Fluke 718 100US features a built-in manual pressure/vacuum hand pump, allowing you to generate and vent pressure without external equipment.
The total shipping weight is approximately 5.0 lbs (2.3 kg). This package includes the calibrator unit, the yellow protective holster, test leads, alligator clips, and calibration documentation.
Yes, the 718 features easy-to-clean pump ports. This design helps prevent damage if fluids accidentally enter the pump during field use, significantly extending the life of the tool.
Yes, it is fully compatible with the Fluke 700Pxx pressure modules, allowing you to expand your pressure measurement range as needed.
