B&G Zeus 3S 12 Multi-Function Sailing Display - 000-15409-002
B&G Zeus 3S 12 Multi-Function Sailing Display - 000-15409-002
| Brand: | B&G |
| Product Code: | 000-15409-002 |
| Availability: | In Stock |
-
$2,599.00
B&G Zeus 3S 12 Multi-Function Sailing Display - 000-15409-002
The World's Fastest Sailing Chartplotter | iMX.8 Quad-Core Processing | SolarMax™ IPS Display
Description

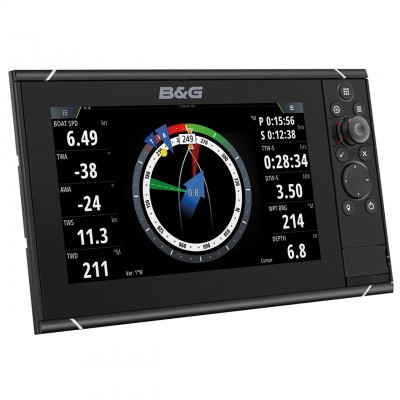

The B&G Zeus 3S 12 is the ultimate sailing multi-function display, offering lightning-fast response times and high-definition clarity. Powered by the advanced iMX.8 quad-core processor, this flagship MFD delivers twice the processing speed of previous models, allowing you to run charts, radar, and sonar simultaneously with zero lag. The 12-inch SolarMax™ IPS display provides ultra-wide viewing angles and remains perfectly visible through polarized sunglasses in direct sunlight.
Specifically engineered for sailors, the Zeus 3S includes B&G’s award-winning sailing features such as SailSteer, Laylines, and RacePanel. The hybrid interface combines an intuitive multi-touch screen with a dedicated keypad and rotary dial, ensuring you maintain total command in everything from a calm breeze to a heavy storm. Whether you are a blue-water cruiser or a serious regatta racer, the Zeus 3S is the core of your navigation system.
Advanced Sailing Features
- SailSteer: View heading, wind, laylines, and tide on one dedicated sailing screen.
- Laylines: Overlays tacking and jibing lines on your charts for optimal routing.
- RacePanel: Professional-grade start line tools, time-to-burn, and wind shift data.
- PredictWind: Access high-resolution weather forecasts and routing directly on the MFD.
- FLIR & Radar Integration: Full control for HALO Radar and thermal imaging safety systems.
- Hybrid Control: Full multi-touch functionality with a physical keypad for wet-weather reliability.
Technical Specifications
| Display Size | 12-inch Diagonal SolarMax™ IPS High-Definition |
| Resolution | 1280 x 800 pixels |
| Processor | iMX.8 Quad-Core (Double the speed of Zeus 3) |
| Screen Brightness | 1200 nits |
| Viewing Angles | 80° (Top/Bottom/Left/Right) |
| Internal GPS | 10Hz, 34 Channels, WASS/EGNOS/MSAS/GLONASS |
| Weight (Unit Only) | 6.83 lbs / 3.10 kg |
| Dimensions (W x H x D) | 13.85" x 8.85" x 3.86" (352 x 225 x 98 mm) |
| NMEA 2000 Connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| Ethernet Ports | 2 x 5-pin Yellow Connectors (Radar/Networking) |
| Video Input | 2 x Composite Video (RCA) |
| Voltage Supply | 12V DC (10 - 17V DC) |
| Power Consumption (Max) | 28 Watts |
| Waterproof Rating | IPX6 and IPX7 |
| Operating Temp Range | -15°C to +55°C (5°F to 131°F) |
Included in Box
- B&G Zeus 3S 12 Display Unit
- Sun Cover (Protective Protective Bezel)
- Gimbal Bracket and Knobs Kit
- Dashboard Mount / Flush Mount Kit
- Power Cable (4-Pin, 2m) with Fusing Kit
- Edge Bezels (Top and Bottom)
- Dust Caps and Document Pack
