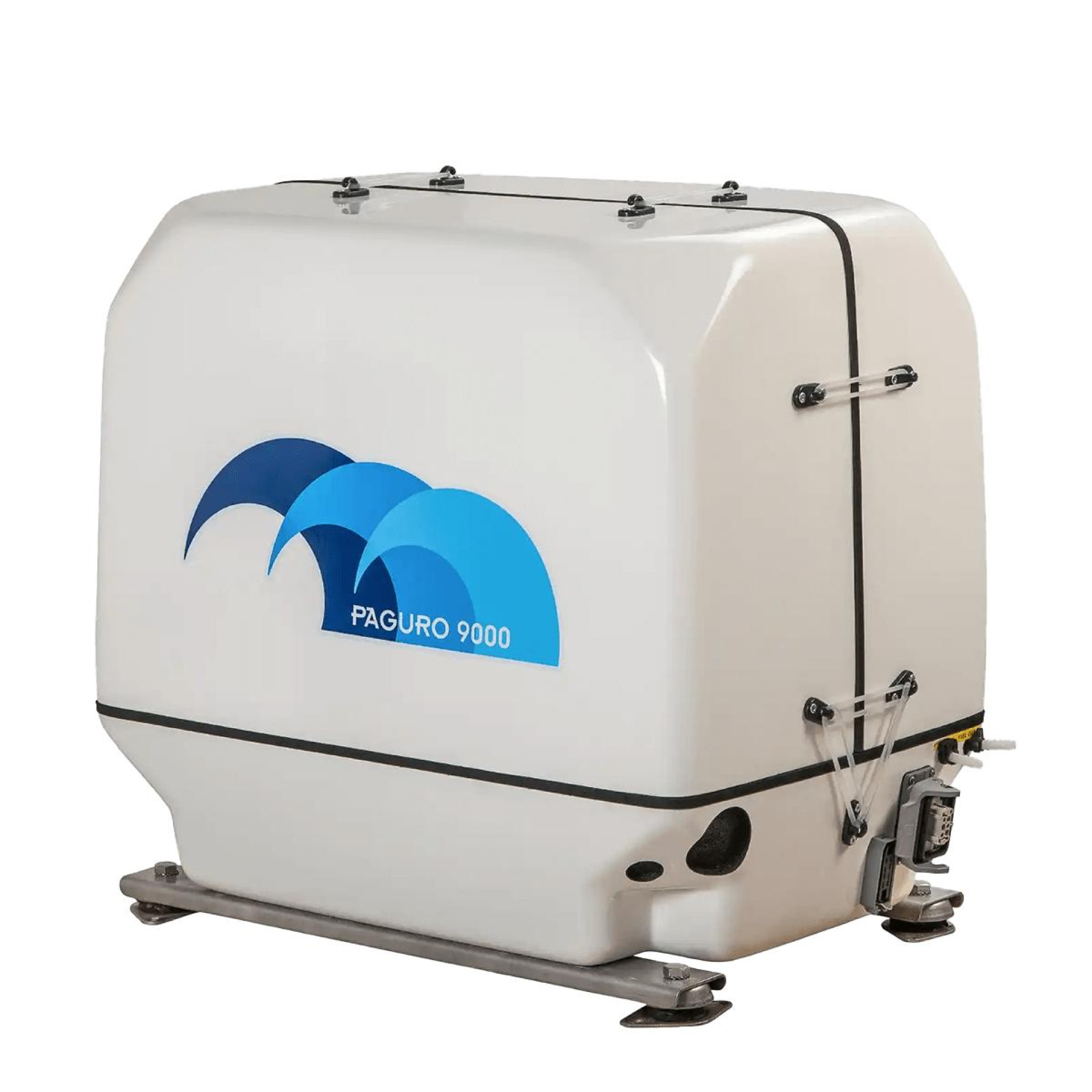

VTE Paguro 9000 is a compact and quiet marine diesel generator designed to provide reliable onboard electrical power for yachts, motorboats, and other marine applications. It delivers 8.5 kW of continuous electrical power at 60 Hz and operates at 3600 RPM, with a 10 kVA continuous rating. The generator is powered by a Lombardini LDW 702 two-cylinder diesel engine and uses a water-cooled synchronous brushless alternator.

The Paguro 9000 features a freshwater cooling system with heat exchanger, stainless steel AISI 316 L components in the raw-water circuit, a 12 V electric starting system, and a remote LCD control panel. Its multilayer GRP soundproof capsule and dual anti-vibration system are designed to reduce operating noise and vibration. The standard package includes a 15-meter (49 ft) remote-control cable and sound shield.

Specifications

• Brand: VTE Paguro
• Manufacturer: VTE – Volpi Tecno Energia, Italy
• Model: Paguro 9000
• Part Number: VTE PAGURO 9000
• Type: Marine Diesel Generator
• Fuel Type: Diesel
• Continuous Electrical Power: 8.5 kW at 60 Hz
• Continuous Apparent Power: 10 kVA at 60 Hz
• 50 Hz Output: 8 kW / 9 kVA
• Frequency: 60 Hz
• 50 Hz Frequency: Available
• Engine Manufacturer: Lombardini Marine, Italy
• Engine Model: LDW 702
• Number of Cylinders: 2
• Engine Type: Four-Cycle Diesel
• Engine Speed: 3600 RPM at 60 Hz
• Engine Speed: 3000 RPM at 50 Hz
• Phase: Single Phase
• Voltage Output: 115/230 V at 60 Hz
• Voltage Output: 230 V at 50 Hz
• Peak Current: 204 A at 60 Hz
• Peak Current: 102 A at 50 Hz
• Alternator Manufacturer: V.T.E. – Volpi Tecno Energia, Italy
• Alternator Type: Synchronous, Brushless
• Alternator Regulation: Capacitor Regulation
• Alternator Insulation: Class H
• Alternator Cooling: Water-Cooled
• Heat Exchanger: Stainless Steel AISI 316 L
• Battery Charger: 12 V / 8 A
• Fuel Consumption: 0.35 L/kW/h
• Engine Cooling: Freshwater with Heat Exchanger
• Cooling Pump: Self-Priming
• Starting System: 12 V Electric Starter
• Starting/Shutdown: Remote Controlled
• Remote Control: LCD Display
• Remote Panel: Load Indicator, Hour Meter, Frequency / Engine Speed
• Remote Cable: 15 m / 49 ft
• Automatic Shutdown: Low Oil Pressure / High Temperature
• Automatic Start: Optional
• Soundproof Capsule: Multilayer GRP with Sound-Absorbing Material
• Anti-Vibration System: Dual System
• Dimensions: 720 × 460 × 620 mm
• Dimensions: 28.3 × 18.1 × 24.4–24.9 in
• Weight with Capsule: 170 kg / 374 lb
• Noise Level: 52 dB(A) at 7 m
• Raw-Water Components: AISI 316 L Stainless Steel
• Warranty: 2 Years
• Application: Yachts, Motorboats and Marine Onboard Power

Key Features

• 8.5 kW continuous electrical output at 60 Hz
• 10 kVA continuous apparent power
• 3600 RPM operation at 60 Hz
• Lombardini LDW 702 two-cylinder diesel engine
• Single-phase 115/230 V output
• Synchronous brushless alternator
• Capacitor voltage regulation
• Class H alternator insulation
• Water-cooled alternator
• Freshwater engine cooling with heat exchanger
• AISI 316 L stainless-steel heat exchanger
• 52 dB(A) low-noise operation at 7 m
• Multilayer GRP soundproof capsule
• High-density sound-absorbing insulation
• Dual anti-vibration mounting system
• 12 V electric starting system
• 12 V / 8 A battery charger
• LCD remote control panel
• Real-time load indicator
• Frequency and engine-speed monitoring
• Hour meter
• Automatic shutdown for low oil pressure
• Automatic shutdown for high temperature
• 15 m / 49 ft remote-control cable
• Optional automatic start
• Compact design for limited installation spaces
• Suitable for yachts and motorboats
• 2-year standard VTE warranty
