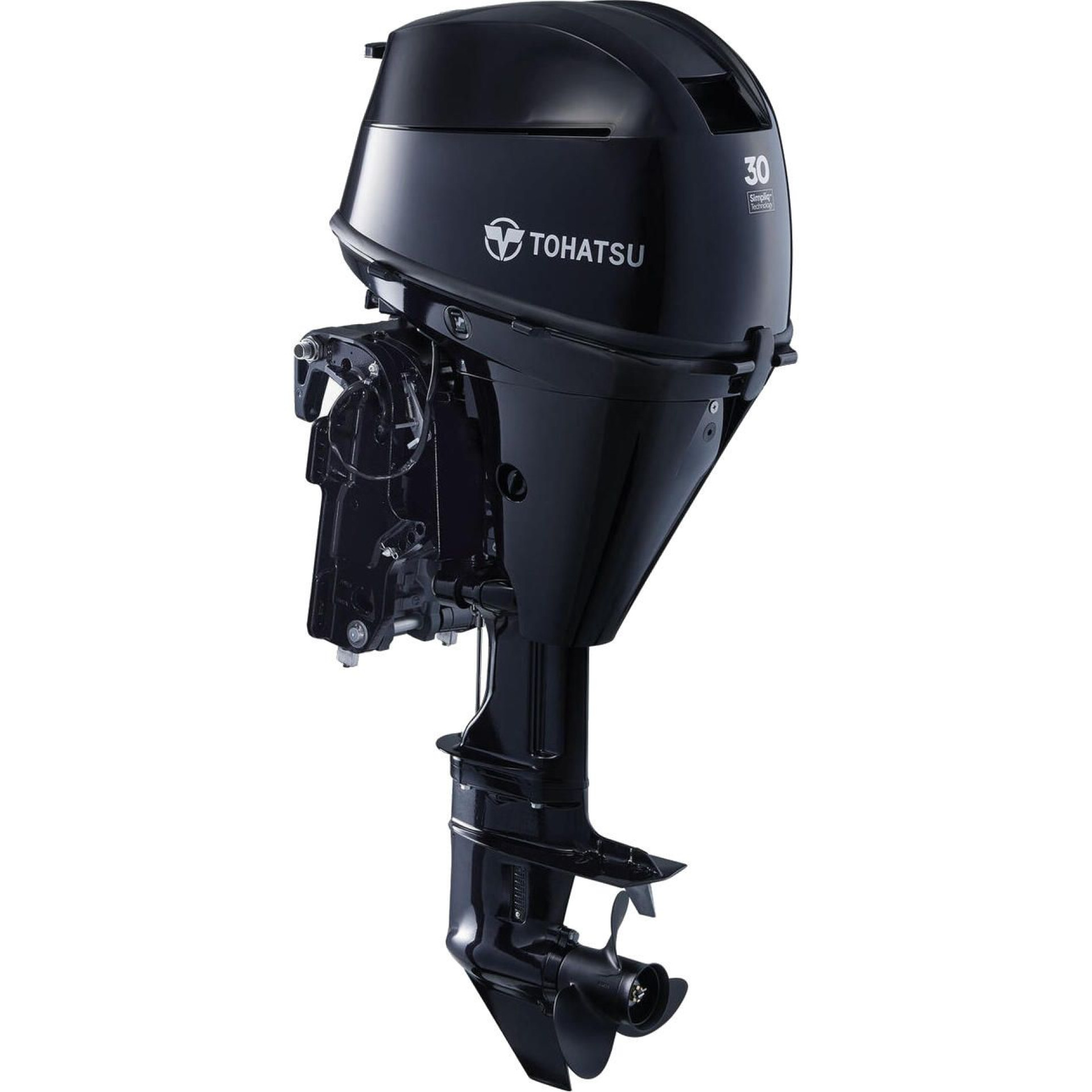

The Tohatsu MFS30D is engineered for a wide range of boat types including inflatables, RIBs, aluminum fishing boats, and pontoons. With the lightest weight in its class, improved reliability, and advanced fuel efficiency, the MFS30D provides smooth performance, easy handling, and dependable power for every boating adventure.

Features:

• Advanced cross-flow induction for smooth operation
• Ultra low emission, EPA and CARB 3-Star compliant
• Optimized 2.17:1 gear ratio for strong torque and improved top end performance
• Battery-less EFI for quick, reliable starting
• Digital CD ignition system for faster response and smoother idle
• High output 17.5A alternator for dependable charging
• Adjustable steering friction and trim tab for reduced steering effort
• Built-in freshwater flush system for easy maintenance
• No mess oil filter drip pan for clean oil changes
• Tool-free clear fuel filter with water detection ring
• Thermostatically controlled cooling system for consistent temperature
• Stainless steel water pump housing liner for exceptional durability
• Marine grade aluminum alloy and zinc-coated internal passages for superior corrosion resistance
• Low oil pressure and overheat warning (audible and visual)
• Safety lanyard and start-in-gear protection for safer operation
• Over-rev limiter (audible and visual)
• Variable idle speed control
• Shallow water drive capability

Specifications:

• Engine Type: 4-Stroke, 3 Cylinder
• Displacement: 500 cc (30.5 cu. in.)
• Bore & Stroke: 2.40" x 2.25" (61 x 57 mm)
• Full Throttle RPM Range: 5500 - 6500
• Alternator Output: 12V, 210W, 17.5A
• Dry Weight Range: 128 lbs
• Rated Power: 30 HP
• Fuel Delivery: EFI
• Steering Type: Remote
• Shaft Length: 15", 20"
• Starting System: Electric
• Cooling System: Water cooled with thermostat
• Ignition System: Digital CD ignition
• Exhaust: Through prop
• Lubrication System: Wet sump
• Oil Capacity: 1.7 L
• Trim Range: Manual, 6 positions
• Tilt Range: 75 deg.
• Gear Ratio: 2.17:1
• Gear Shift: F-N-R
• Standard Propeller Type (Diameter x Pitch): 3-blade aluminum (sold separately)
• Oil Pressure Alert: Yes
• Temperature Alert: Yes
• Rev Limiter: Yes
• Fuel Tank Capacity: 6.6 gal external
• Factory Warranty: 5 years. Warranty begins on
